ZWH-200/0.8-12
BAILIAN
8414804090

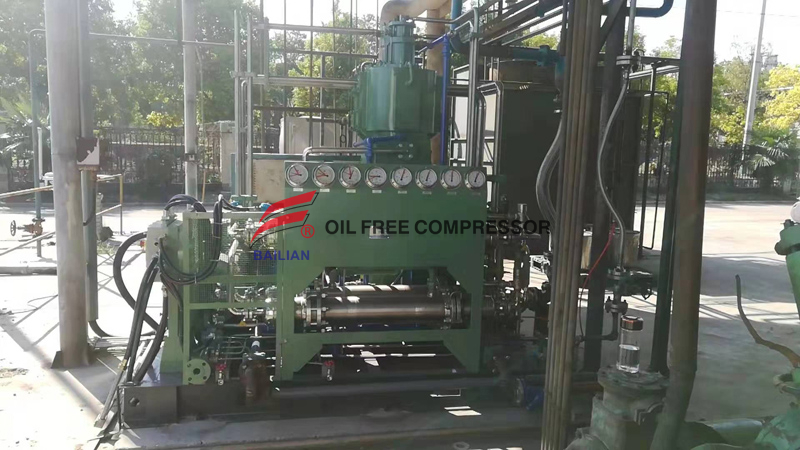

low pressure hydrogen compressor,as the name suggests, are devices that change the volume of hydrogen to complete compression and delivery. According to the principle, the hydrogen compressor can be divided into two types: volumetric type and speed type. Hydrogen compressors are available in diaphragm, reciprocating piston, rotary, screw, and turbine types.
Hydrogen is an important industrial raw material and has many uses in the industry. The common uses of hydrogen compressors are as follows:
low pressure hydrogen gas reciprocating compressor: filling hydrogen into high pressure bottle for storage, our hydrogen compressor filling pressure 150-200BARG
Decomposition of ammonia to produce hydrogen, pressurized for use in heat treatment of steel mill stainless steel
Photovoltaic power generation + hydrogen refueling station: electricity is produced by photovoltaic power generation, and then hydrogen is produced by water electrolysis. The hydrogen booster compressor supplier in the general hydrogen refining station is pressurized to 400-450 barg, and is filled into a high-pressure hydrogen bottle to supply hydrogen energy vehicles. use.
oil free low pressure hydrogen compressor in chemical reactions, such as hydrogen compressors for polysilicon
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry hydrogen gas | |
2 | model | ZWH-200/0.8-12 | |
3 | Structure | oil free reciprocating,Vertical type | |
4 | Pressure stage | 2 2cylinder | |
5 | Rated capacity(standard)Nm3/h | 200Nm3/hr (@suction 0.8barg) | |
6 | Rated inlet pressure MPa(G) | 0.08 | |
7 | Rated outlet pressure MPa(G) | 1.2 | |
8 | Inlet temperature℃ | 0～35 | |
9 | Outlet temperature ℃ | ≤45 | |
10 | Transmit gas temperature℃ | ≤45 | |
11 | Shaft speed r/min | 350 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Shaft and connect rod | grease |
Cylinder | Oil free lubricate | ||
Shaft power | |||
14 | Motor power Kw | 30kw 380V50Hz ExdiiCT4 ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 2600×1750×2200 ※ | |
19 | Inlet and outlet mm | DN100/DN40 | |
20 | Weight Kg | 3200 ※ | |
21 | Voltage | 380v/50hz/3phase | |
22 | Water consumption | 3200kgs/hr | |
Water inlet outlet | DN40 | ||
Pipe and valve,gas valve | Stainless steel | ||
Piston ring ,filling stuff | Filled with polytetrafluoroethylene | ||
Crank and shaft | Carbon steel | ||
1. The above parameters are for reference only, and subject to the final technical quotation
2. More displacement, higher filling pressure, please consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
