Gow-100/4-150
BAILIAN
8414804090

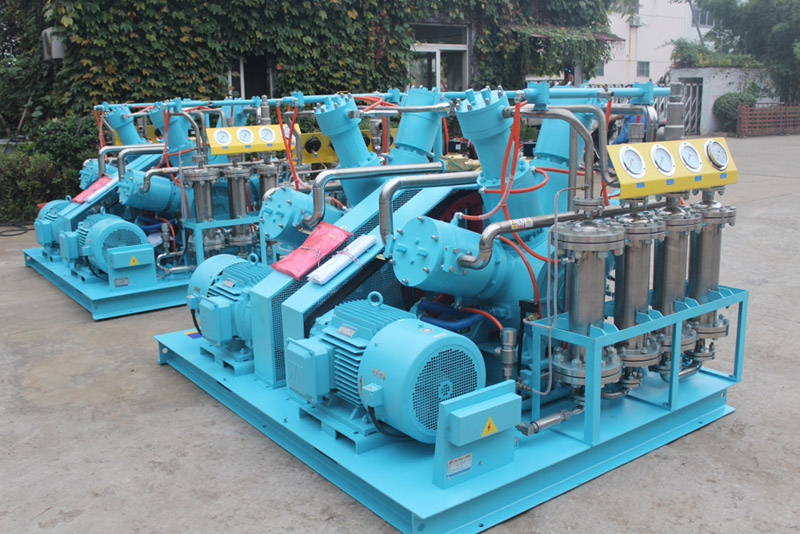

This oil-free high pressure oxygen compressor is suitable for inlet pressures of 3-4 barg (40-60 psig) and discharge pressure of 150 barg (2150 psig).
The medium and small PSA air separation oxygen system with a flow rate of 10NM3-300NM3/hour can run continuously for 24 hours.
This compressor features

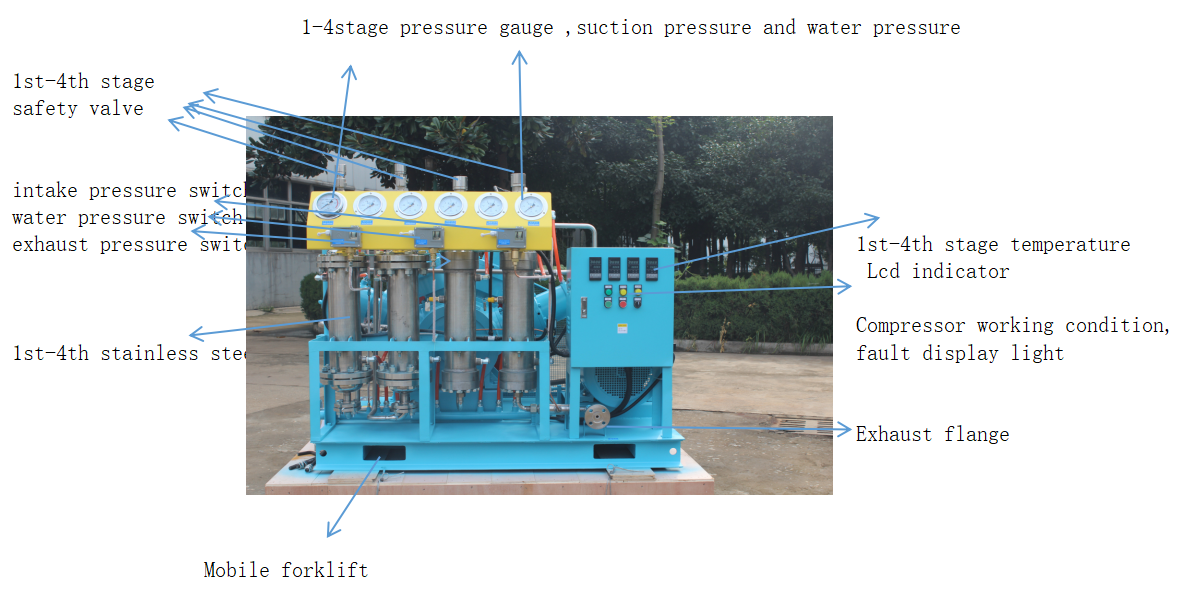

It adopts four-stage compression, stainless steel cylinders, each with safety valve, the inlet is equipped with low intake pressure protection, the exhaust end is equipped with high exhaust pressure protection, and each stage has a temperature sensor. Overpressure, the system will alarm and stop, ensure safe operation, small size, light weight, forklift parking position at the bottom, can be easily moved
All standard oxygen compressors are CE marked to meet the requirements of the EU market. We can also provide customized oxygen compressors according to customer conditions.
Our oxygen compressors have the following features
According to the different working conditions of the customer:
1. Completely 100% oil free, no oil required (depending on the specific model)
2. Oxygen for VPSA PSA and LOX gas source
3.NO pollution, keep the same purity into the gas
4.RELIABLE and high quality, comparable to the American RIX brand.
5. TOP low cost, low maintenance cost, simple operation, just change the piston ring
6. 4000 hours piston ring working life under low pressure conditions, 1500-200O hours working life under high pressure conditions
7.TOP brand motor, can be specially pointed out, just like the SIMENSE brand
8.SUPPLY JAPAN market, Japan's strict approval quality system
9.CE approved to meet the requirements of the EU market
10. According to the customer's specific working conditions, the compressor is designed for single machine compression, two-stage compression, three-stage compression and four-stage compression.
11. Low speed, long life, average speed 260-350RPM,
12. Low noise, average noise below 75dB, can work quietly in the medical field
13, continuous continuous heavy-duty operation, can run stably for 24 hours without stopping
14. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.
15. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way | pressure riato |
GOW-100/3-150 | oxygen | 0.3,40 | 15,2150 | 37 | 100 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-100/3-200 | oxygen | 0.3,40 | 20,2850 | 37 | 100 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-110/4-150 | oxygen | 0.4,60 | 15,2150 | 37 | 110 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-120/8-150 | oxygen | 0.8,115 | 15,2150 | 30 | 120 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-120/2-250 | oxygen | 0.2,30 | 25,3460 | 55 | 120 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-130/4-150 | oxygen | 0.4,60 | 15,2150 | 45 | 130 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-150/4-185 | oxygen | 0.4,60 | 18.5,2650 | 55 | 150 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
GOW-200/3.5-200 | oxygen | 0.35,50 | 20,2850 | 55 | 200 | 220V/380V/415V/440V 50/60HZ | Water cooloing | 4 stage |
1. The above parameters are for reference only, and subjest to the final technical quotation
2. More displacement, higher filling pressure, like 20Mpa,23Mpa,300Mpa please consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor?
