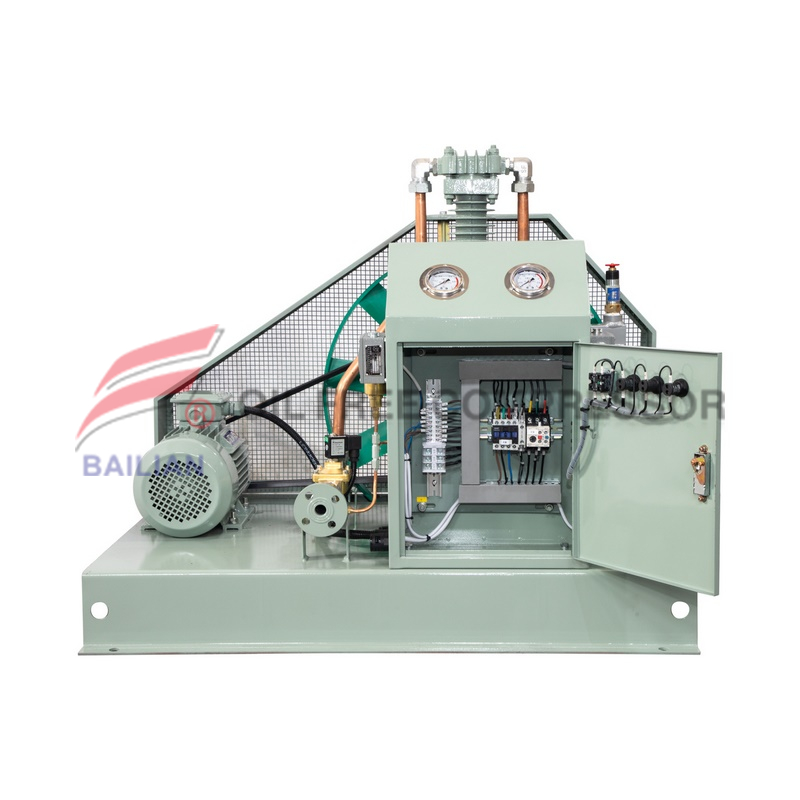

7nm3 20bar Laser Cutting Oil Free Nitrogen Compressor
Bailian oil free nitrogen compressor
According to the product structure, it can be divided into
Type Z, V, W, SW, GSW, ZW
The displacement of the compressor can reach 10nm3 / min and the maximum pressure can reach 70MPa
The product has the following characteristics
1. Scientific and reasonable design and stable operation
2 low noise, low vibration, compact structure, stable operation, safety and reliability, high automation level,
The machine remote display and control system can also be configured according to customer requirements
3. Display the alarm shutdown function of high temperature, low inlet pressure and high exhaust pressure of the compressor,
4. Patented piston ring design, stuffing box design, less gas leakage and longer maintenance time
Product application:
It is widely used for pressure increase, pressure stabilization, power and purging in process flow, as well as power plant, food industry, medicine and other industries
OIL FREE NITROGEN COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry Nitrogen gas | |
2 | model | ZW-7/8-20 | |
3 | Structure | oil free reciprocating 1 stage 2 cylinder ，Z type | |
4 | Pressure stage | 1 | |
5 | Rated capacity(standard)Nm3/h | 7@inlet pressure=0.8MPa（g） | |
6 | Rated inlet pressure MPa(G) | 0.8 | |
7 | Rated outlet pressure MPa(G) | 2.0 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 430 ※ | |
12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free | ||
14 | Motor power Kw | 1.5kw 440V 60Hz 3Ph ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |

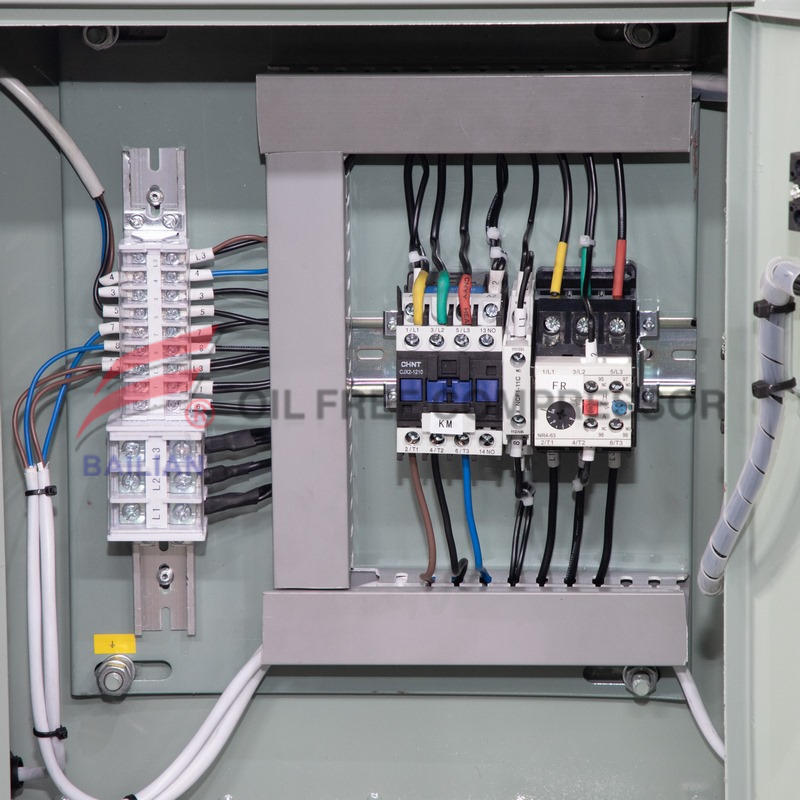

17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1100×700×950 ※ | |
19 | Inlet and outlet mm | DN25 /DN15 | |
20 | Weight Kg | 120 ※ | |
21 | Voltage | 440v 60hz 3phase | |
22 | Delivery time | 25 days | |
