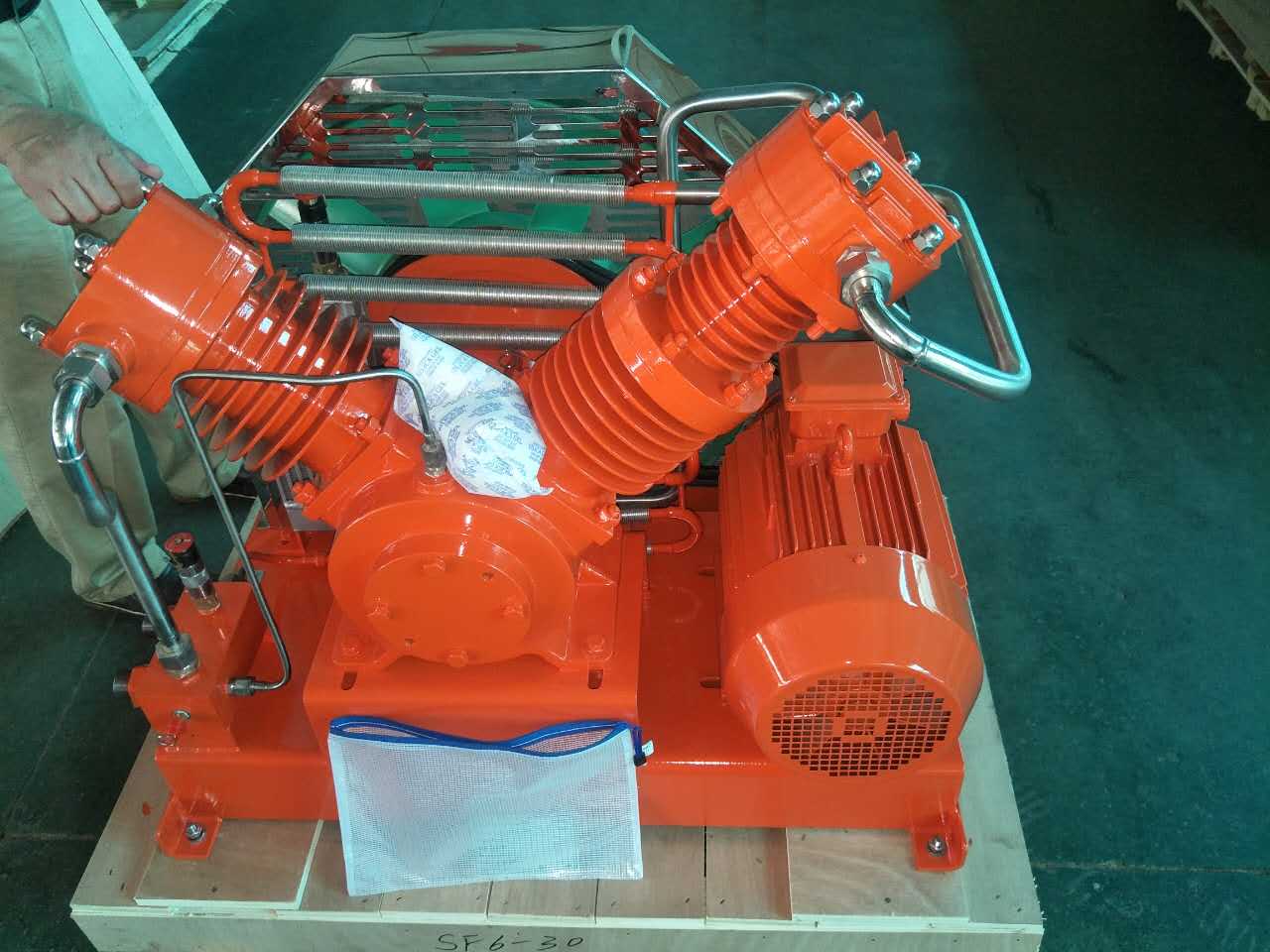

SF6-12/2-60
TECHNICAL DATA | |||||
Medium | SF6 | Quantity | 1开 备 | ||
Inlet pressure MPa（G） | 0.2 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa（G） | 6.0 | Discharge temperature（after cooling） ℃ | ≤ 50 | ||
Flow rate Nm3/h | 12 | Piston stroke mm | 63 | ||
Model | SF6-12/2-60 | Compression stages | 2 | ||
Structural style | Completely oil-free lubrication V-type | Cylinder quantity | 2 | ||
Shaft speed r/min | 300 ※ | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | ≤3.8kw | Main motor speed r/min | 730 | ||
Air inlet and outlet aize mm | 25、15 | Water Inlet and outlet interface mm | --- | ||
Motor | 5.5KW 380V 50Hz ※ | ||||
Dimensions mmXmmXmm | 1200X700X1100 ※ | Weight T | 0.28 ※ | ||
Drive mode | Belt drive | ||||
Material of parts in contact with gas | cylinder | Stainless steel | |||
valve | Stainless steel | ||||
Pipeline, cooler | Stainless steel | ||||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, intake filter, front primary meter and control components, safety valve, random documents, random spare parts, etc. (Note: The final technical agreement shall prevail). | ||||
Additional notes | Sealing method: mechanical sealing. | ||||
Delivery time | 30 days after the contract is signed and the advance payment is received | ||||
