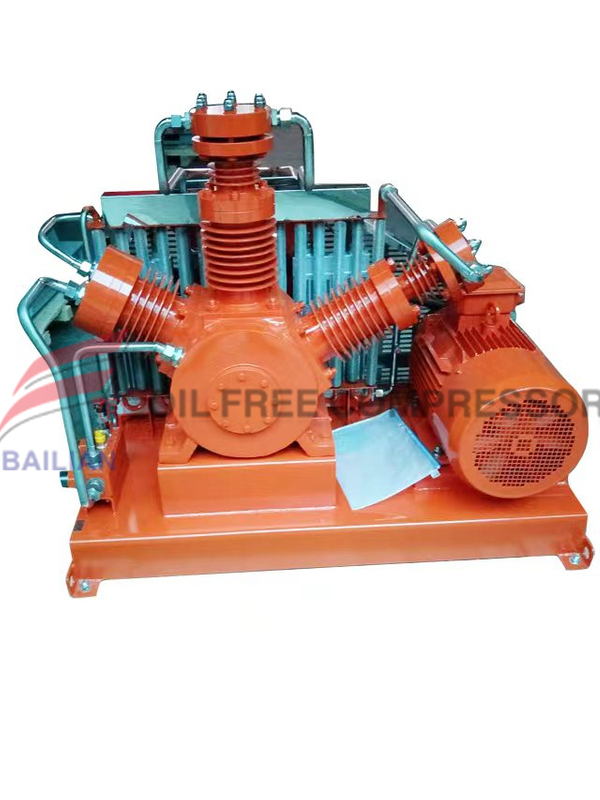

High Quanlity SF6 Oil-free Lubrication W-type Compressor SF6-50/2-50

Availability:
Quantity:
  • SF6-50/2-50

TECHNICAL DATA

Medium

SF6

Quantity

1开  备

Inlet pressure  MPa(G)

0.2

Inlet temperature       ℃

≤ 40

Discharge pressure    Mpa(G)

5.0

Discharge temperatureafter cooling) ℃

≤ 50

Flow rate    Nm3/h

50

Piston stroke          mm

90

Model

SF6-50/2-50

Compression stages

3

Structural style

Completely oil-free lubrication W-type

Cylinder quantity

3

Shaft speed      r/min

   500  ※

Voltage          V

380

Cooling mode

Air cooling

Cooling water flow        t/h

---

Shaft power           kw

≤12.1kw

Main motor speed        r/min

1440

Air inlet and outlet aize  mm

M36*1.5、M27*2

Water Inlet and outlet  interface mm

---

Motor

15KW 380V 50Hz

Dimensions mmXmmXmm

1220X840X1200 ※

Weight         T

 0.95 ※

Drive mode

Belt drive

Material of parts in contact with gas

cylinder

Stainless steel


valve

Stainless steel


Pipeline, cooler

Stainless steel

Scope of supply

Main engine, motor, skid mounted chassis, starting cabinet, intake filter, front primary meter and control components, safety valve, random documents, random spare parts, etc.

(Note: The final technical agreement shall prevail).

Additional notes

Sealing method: magnetic sealing.

Delivery time

40 days after the contract is signed and the advance payment is received

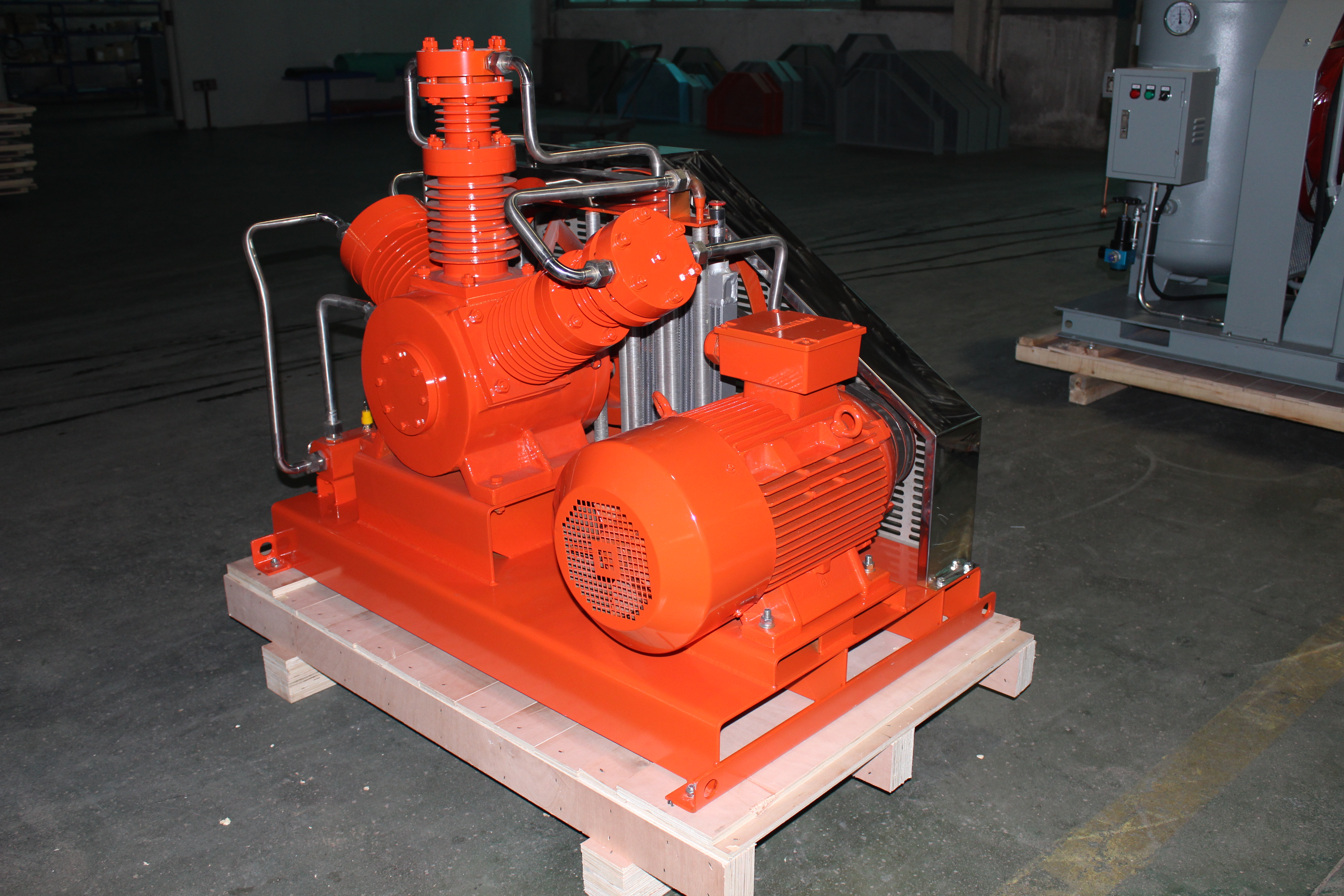

85fcdf8832b9939e1ddaab806357c92
