Oil Free Carbon Dioxide Gas Co2 Compressor

Oil Free Carbon Dioxide Gas Co2 Compressor

Product Feature

1.Total oil free

2.single or double stage

3.easy moving

4.heavy duty ,and 24 hours continues working

5.silent working

Product Specification

oil free co2 compressor refers to a compressor for pressurizing carbon dioxide gas and achieving transportation. Mainly used,

1. Recycling of dry ice volatilized gas from CO2 plant, recycling of CO2 from factory,

2. Industrial and pharmaceutical extraction processes using the liquid properties of CO2

3. Large-scale carbon dioxide compressor is mainly used in urea synthesis equipment

When co2 oil free recovery compressor extraction designing and using, it should be noted that: (1) the critical temperature of carbon dioxide is high, and it can be liquefied at 31.3 ° C and 7.14 MPa. When used in winter, the interstage cooling temperature should not be too low; (2) when carbon dioxide is below 60 MPa, it is beneficial to gas. (3) Due to the relatively high relative density of carbon dioxide gas, it is not appropriate to use an excessively large average piston speed, otherwise the gas valve resistance is high; (4) carbon dioxide gas contains a small amount of water, which is highly corrosive, so the gas valve, Coolers and buffer tanks are required to be made of stainless steel.

Pneumatic cylinder control ,compressor change pressure stage automatic according to inlet pressure condition in co2 gas recovery system

here is oil free extraction co2 compressor technical data

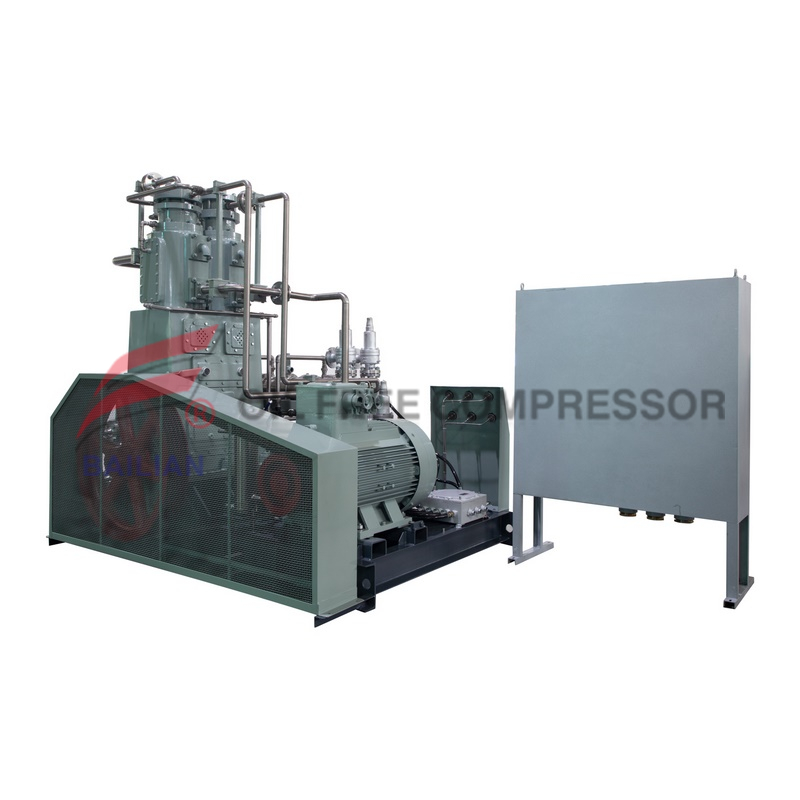

OIL FREE CARBON DIOXIDE COMPRESSOR

OIL FREE CO2 COMPRESSOR

Supply scope :

Compressor pump, motor, cooler, skid chassis, start cabinet, suction filter, a instrument meter and control components, safety valves, import and export matching flange, compressor files.
