CW-180/0.5-20
佰联
8414804090

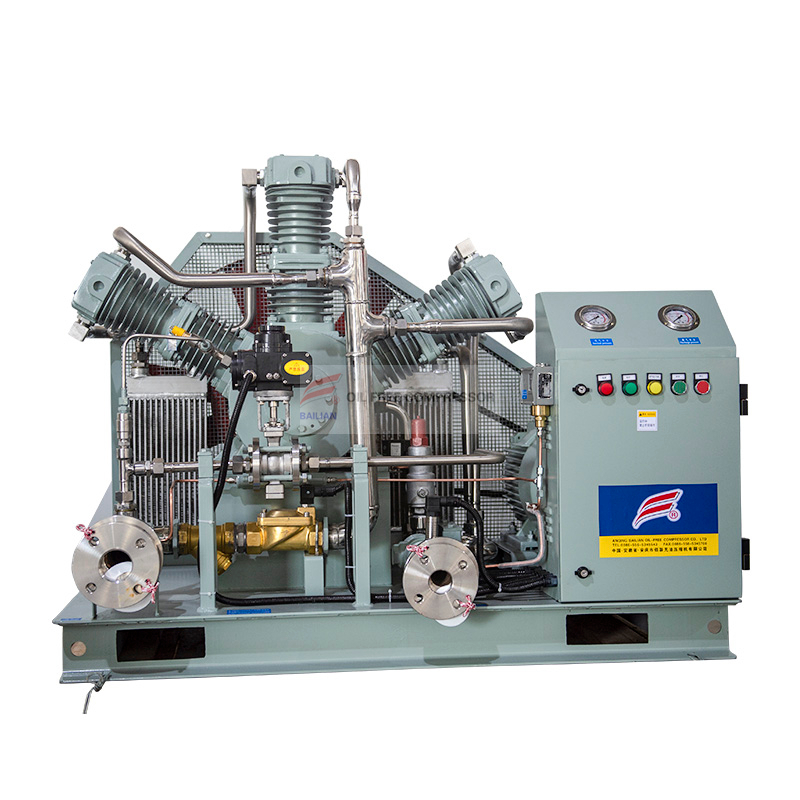

CW-180/0.5-20 refers to a compressor for pressurizing carbon dioxide gas and achieving transportation. Mainly used,
1. Recycling of dry ice volatilized gas from CO2 plant, recycling of CO2 from factory,
2. Industrial and pharmaceutical extraction processes using the liquid properties of CO2
3. Large-scale carbon dioxide compressor is mainly used in urea synthesis equipment
When paintball liquid co2 compressor designing and using, it should be noted that: (1) the critical temperature of carbon dioxide is high, and it can be liquefied at 31.3 ° C and 7.14 MPa. When used in winter, the interstage cooling temperature should not be too low; (2) when carbon dioxide is below 60 MPa, it is beneficial to gas.
here is horizontal liquid paintable co2 compressor technical data
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry CO2 gas | |
2 | model | CW-180/0.5-20 | |
3 | Structure | oil free reciprocating,SW type | |
4 | Pressure stage | 3, 4cylinder | |
5 | Rated capacity(standard)Nm3/h | 180Nm3/hr (@suction 0.5barg) | |
6 | Rated inlet pressure MPa(G) | 0.05 | |
7 | Rated outlet pressure MPa(G) | 2.0 | |
8 | Inlet temperature℃ | 0～35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 610 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Shaft and connect rod | grease |
Cylinder | Oil free lubricate | ||
Shaft power | ≤25 | ||
14 | Motor power Kw | 30kw 380V50Hz ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1850×1300×1650 ※ | |
19 | Inlet and outlet mm | DN80/DN25 | |
20 | Weight Kg | 1350 ※ | |
21 | Voltage | 380v/50hz/3phase | |
22 | Water consumption | 2800kgs/hr | |
Water inlet outlet | DN32 | ||
Pipe and gas valve,cylinder sleeve | Stainless steel | ||
Piston ring ,filling stuff | Filled with polytetrafluoroethylene | ||
Crank and shaft | Carbon steel | ||
