GZWY-1420-20.5-140

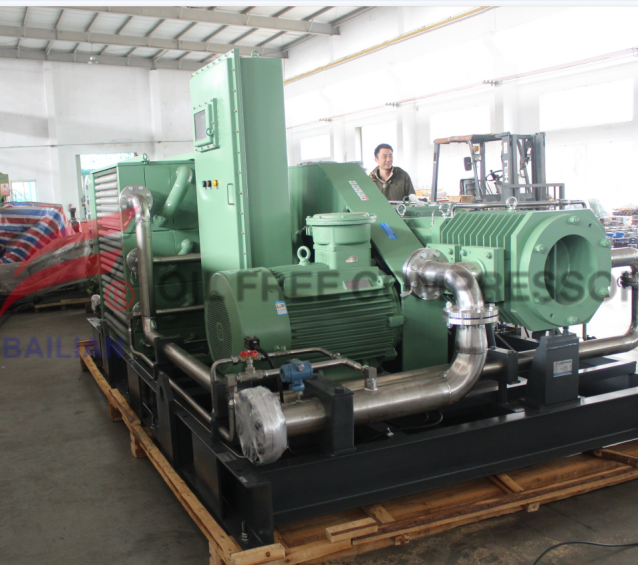

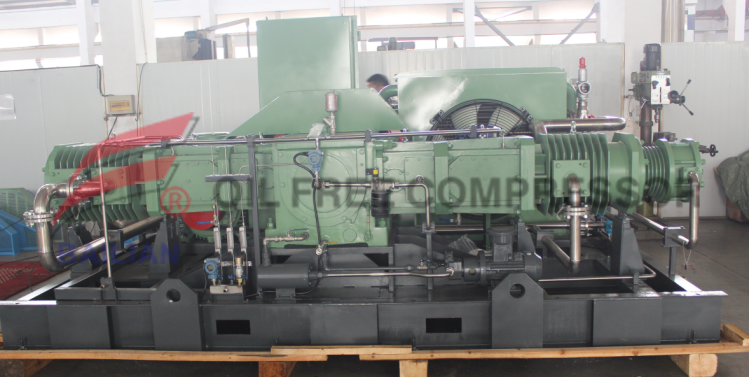

Oil Free Extraction Co2 Compressor
OIL FREE CARBON DIOXIDE GAS RECOVERY SYSTEM
Product Feature
1.Total oil free
2.single or double stage
3.easy moving
4.heavy duty ,and 24 hours continues working
5.silent working
Product Specification
oil free co2 compressor refers to a compressor for pressurizing carbon dioxide gas and achieving transportation. Mainly used,
1. Recycling of dry ice volatilized gas from CO2 plant, recycling of CO2 from factory,
2. Industrial and pharmaceutical extraction processes using the liquid properties of CO2
3. Large-scale carbon dioxide compressor is mainly used in urea synthesis equipment
When co2 oil free recovery compressor extraction designing and using, it should be noted that: (1) the critical temperature of carbon dioxide is high, and it can be liquefied at 31.3 ° C and 7.14 MPa. When used in winter, the interstage cooling temperature should not be too low; (2) when carbon dioxide is below 60 MPa, it is beneficial to gas. (3) Due to the relatively high relative density of carbon dioxide gas, it is not appropriate to use an excessively large average piston speed, otherwise the gas valve resistance is high; (4) carbon dioxide gas contains a small amount of water, which is highly corrosive, so the gas valve, Coolers and buffer tanks are required to be made of stainless steel.

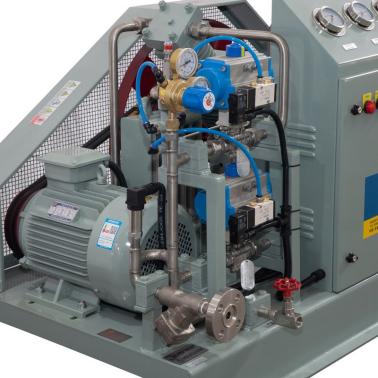

Pneumatic cylinder control ,compressor change pressure stage automatic according to inlet pressure condition in co2 gas recovery system
here is oil free extraction co2 compressor technical data
OIL FREE OXYGEN COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | DRY CO2 GAS | |
2 | model | GZWY-1420/20.5-140 | |
3 | Structure | 2stage, skid mounted | |
4 | Pressure stage | 2STAGE ,4 cylinder | |
5 | Rated capacity(standard)Nm3/h | 1420(@inlet pressure 20.5barg) | |
6 | Rated inlet pressure MPa(G) | 2.05 | |
7 | Rated outlet pressure MPa(G) | 14.0 | |
8 | Inlet temperature℃ | ≤0～35 | |
9 | Outlet temperature ℃ | ≥55 | |
10 | Transmit gas temperature℃ | ≥55 | |
11 | Shaft speed r/min | 360 ※ | |
12 | Cooling way | water cooling | |
13 | Lubricate way | Shaft and connect rod | Lubricate oil |
Cylinder | Oil free lubricate | ||
Shaft power | ≤130kw | ||
14 | Motor power Kw | 160kw 440V 60Hz 3PHASE※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | L3100*W2000*H2600※ | |
19 | Inlet and outlet mm | DN65/DN25 | |
20 | Weight Kg | 6800 ※ | |
21 | Voltage | 440v 60hz 3phase | |
22 | Water consumption | 14TON /HR | |
Water inlet pipe | DN50 | ||
23 | Crank case oil | Customer prepare it | |
24 | Inlet CO2 filter | With | |
25 | Seal way | Piston rod packing seal | |
26 | Water consumption | 14Ton/HR | |
Compressor body ,slide | Cast iron | ||
Piston ring ,filling stuff | PEFT | ||
GAS VALVE ,AND cylinder sleeve | Stainless steel | ||
27 | Control way | PLC control | |
