CW-300/1-25
BAILIAN
8414804090

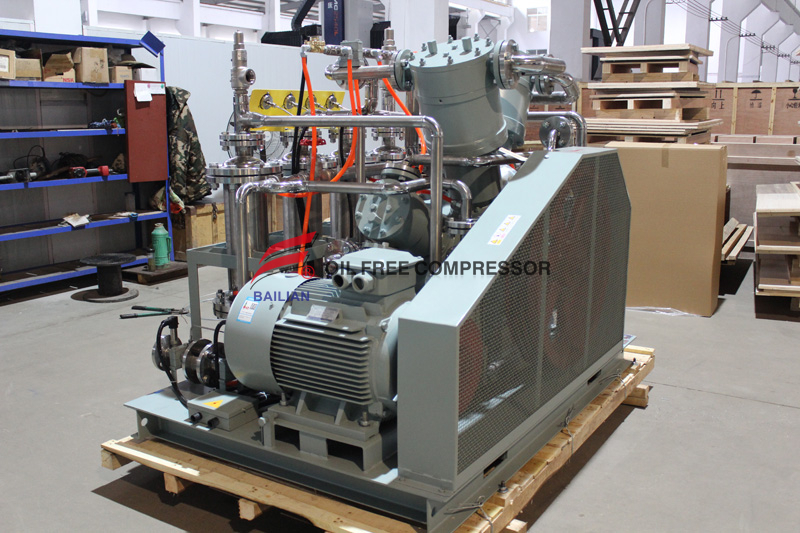

Our piston-type CO2 compressor (carbon dioxide compressor) is a professional oil-free lubrication compression system, specially engineered for industrial CO2 recovery and recycling scenarios. Built on reciprocating piston compression technology, this series delivers reliable, contamination-free CO2 compression for industrial operators aiming to recover, reuse, and store carbon dioxide gas, with a maximum discharge pressure up to 15MPa and flow capacity ranging from 5 to 1420 Nm³/h. Designed to address the core pain points of industrial CO2 waste treatment, this CO2 recovery compressor ensures stable performance even in continuous operation, supporting enterprises to achieve carbon emission reduction and cost optimization goals.
Adopting a full oil-free lubrication design, the friction seals including piston rings and guide rings are made of premium self-lubricating materials. This structure eliminates oil contact with CO2 gas, ensuring zero pollution to the compressed medium and maintaining the purity of CO2 from inlet to outlet, which is critical for industrial recycling and reuse processes.
To cope with the corrosive nature of CO2 gas containing trace moisture, all gas-contacting parts including gas valves, coolers, and buffer tanks are manufactured from stainless steel. This design greatly extends the service life of the equipment and reduces maintenance frequency in long-term industrial operation.
With optimized interstage cooling design, the system strictly controls the temperature of each compression stage, avoiding CO2 liquefaction caused by excessive low temperature in winter and overheating failure in high-load operation. The low pressure ratio design ensures stable compression efficiency under variable working conditions.
Each compression stage is equipped with a safety valve and temperature monitor, with built-in low inlet pressure protection, high exhaust pressure protection, and high exhaust temperature protection. The system will automatically alarm and shut down in case of over-temperature or over-pressure, ensuring safe operation in industrial sites.
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
CW-30/0.05-20 | CO2 | Atmosphere | 2,287 | 7.5kw | 30 | 220V/380V/415V/440V 50/60HZ | air cooling |
CW-30/3-30 | CO2 | 0.3,43 | 3,430 | 7.5 | 30 | 220V/380V/415V/440V 50/60HZ | air cooling |
CW-30/2-65 | CO2 | 0.2,28 | 6.5,935 | 30 | 11 | 220V/380V/415V/440V 50/60HZ | air cooling |
CW-30/55-80 | CO2 | 5.5,790 | 8,1150 | 1.1 | 30 | 220V/380V/415V/440V 50/60HZ | air cooling |
CW-80/0.05-20 | CO2 | Atmosphere | 2,287 | 18.5 | 80 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-105/0.2-25 | CO2 | 0.02,3 | 2.5,360 | 30 | 105 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-100/0.05-20 | CO2 | Atmosphere | 2,287 | 22 | 100 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-110/0.02-18 | CO2 | Atmosphere | 1.8,260 | 30 | 110 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-135/0.05-20 | CO2 | Atmosphere | 2,287 | 30 | 130 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-250/2-25 | CO2 | 0.2,28 | 2.5,360 | 37 | 250 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-300/1-25 | CO2 | 0.1,14 | 2.5,360 | 45 | 300 | 220V/380V/415V/440V 50/60HZ | water cooling |
CW-1200/70-150 | CO2 | 7,1000 | 15,2150 | 55 | 1200 | 220V/380V/415V/440V 50/60HZ | water cooling |
Industrial CO2 waste gas recovery and recycling in chemical plants, fertilizer factories, and power generation facilities
Dry ice volatile gas recovery and storage in dry ice production plants
CO2 circulation and recovery in beverage carbonation and food processing lines
Supercritical CO2 extraction processes in pharmaceutical and fine chemical industries
Urea synthesis production lines with large-scale CO2 compression demands
Our industrial CO2 compressor series has passed ISO9001 quality system certification and EU CE certification, with more than 8000 units of oil-free gas compressors running safely and stably worldwide. Our products have been exported to more than 60 countries and regions across Europe, America, Southeast Asia, the Middle East, and Africa, earning wide recognition from industrial clients including China National Chemical Engineering, China Shipbuilding Industry Corporation, and Baosteel Group.
We provide end-to-end customization services for industrial clients, including tailored adjustment of flow rate, discharge pressure, compression stages, cooling methods, and installation dimensions to match specific on-site working conditions. Our full-service support covers pre-sales engineering consultation, on-site installation and commissioning, operator training, original spare parts supply, and 24/7 technical support, ensuring long-term stable operation of your equipment.
Our industrial recovery CO2 compressors can achieve a maximum discharge pressure of up to 75MPa, with customized solutions available for ultra-high pressure industrial demands.
Yes, all gas-contacting components are made of corrosion-resistant stainless steel, which can effectively adapt to CO2 gas containing a small amount of moisture without corrosion damage.
The maintenance interval for piston rings and guide rings can reach 3000-4000 hours under standard working conditions, with extended service life available for optimized working conditions.
