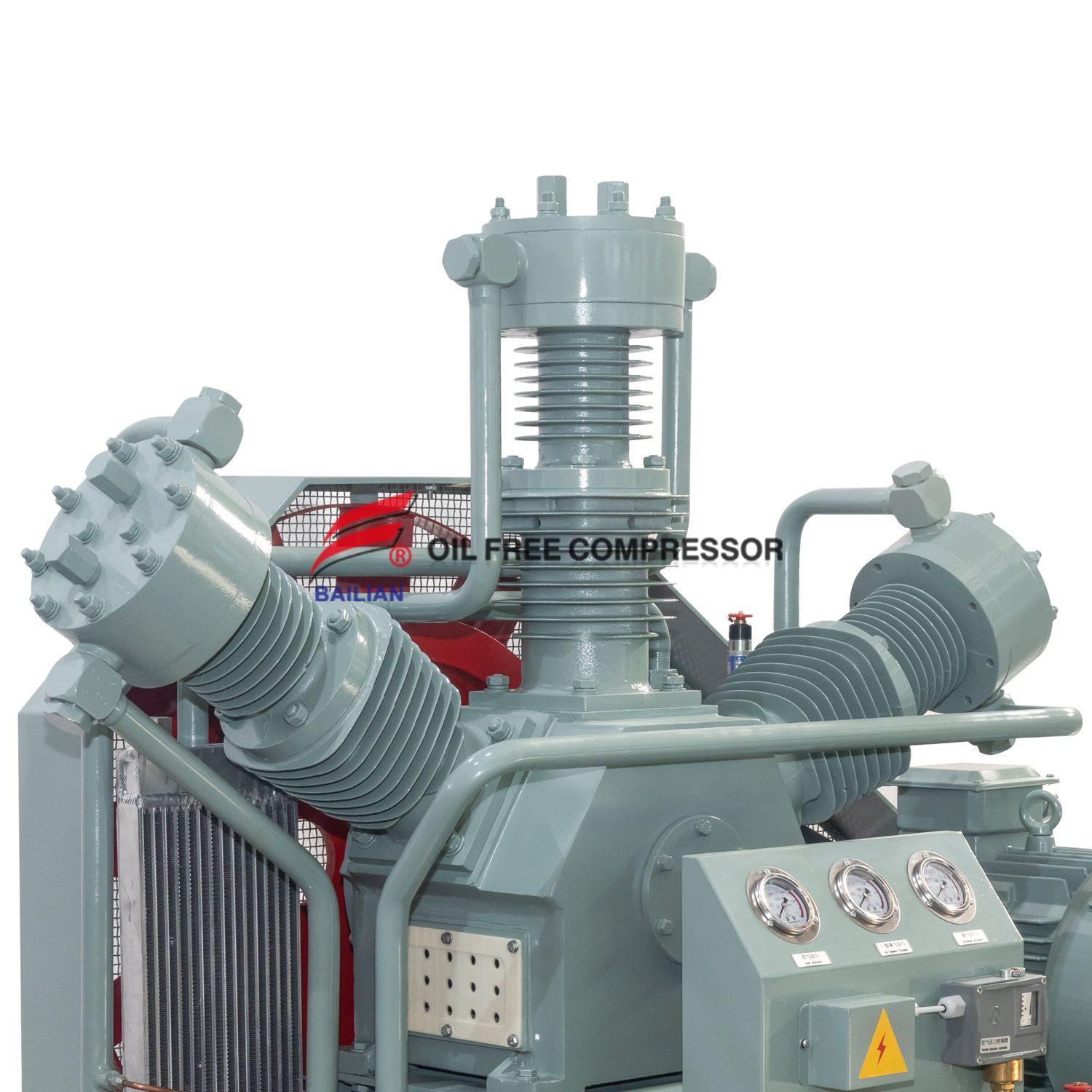

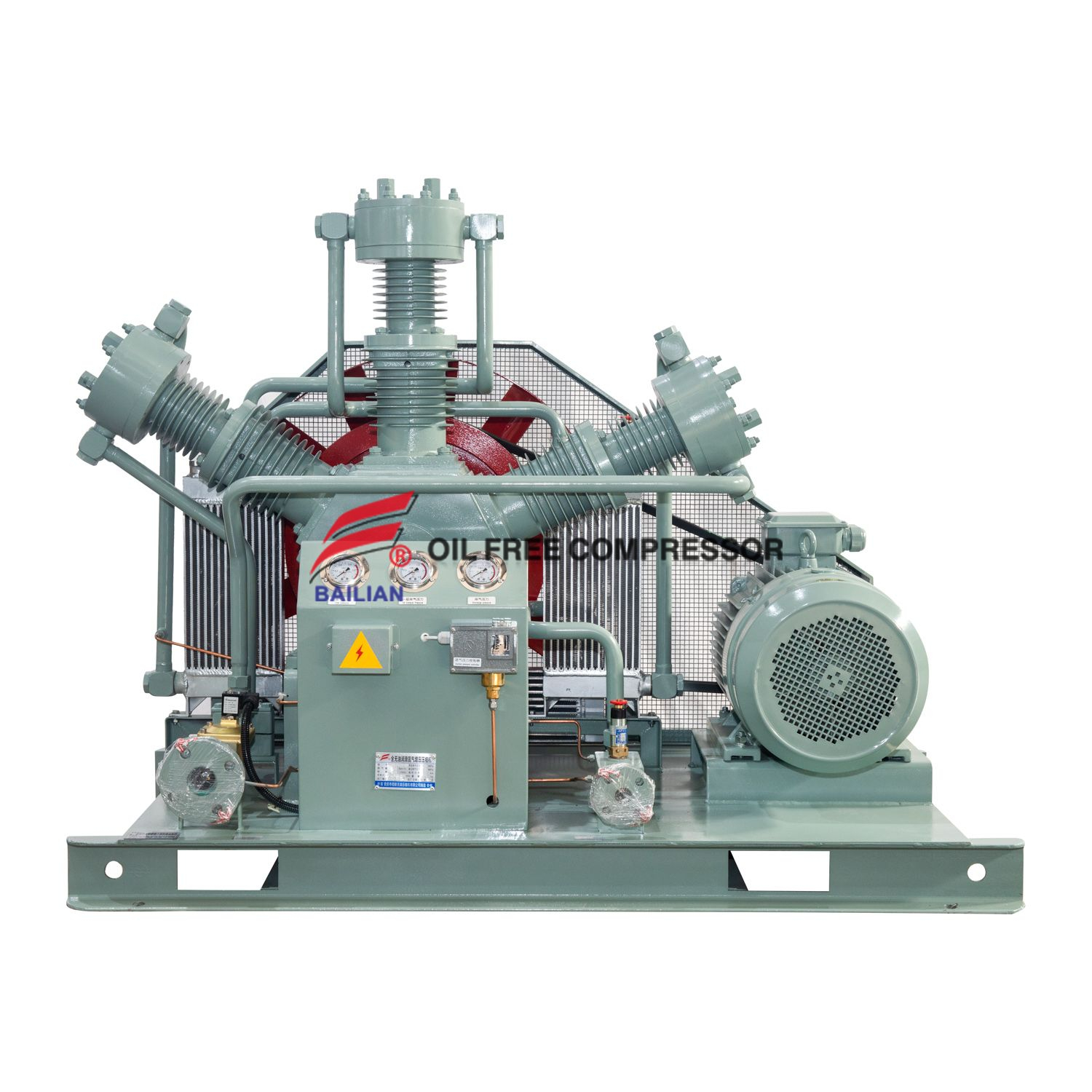

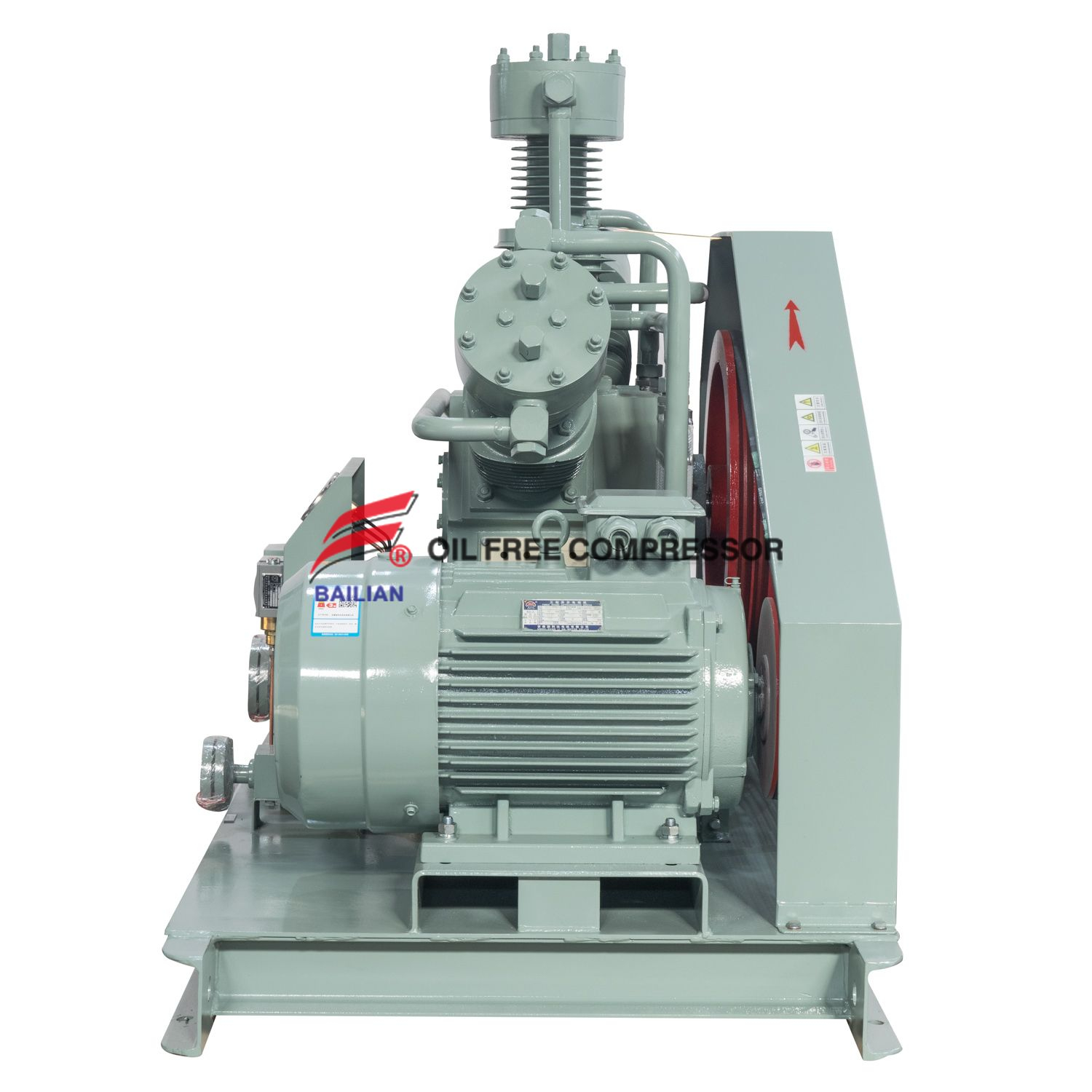

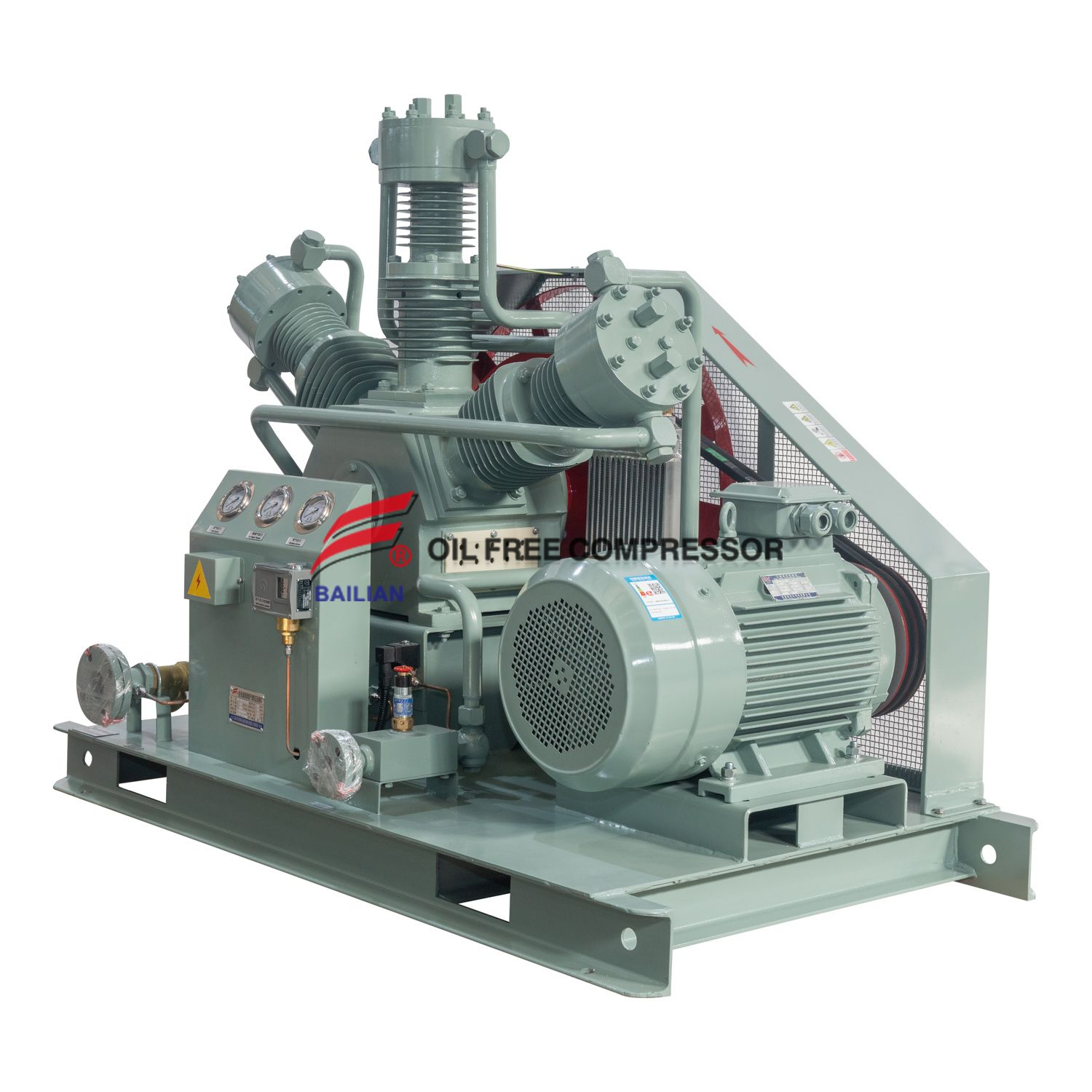

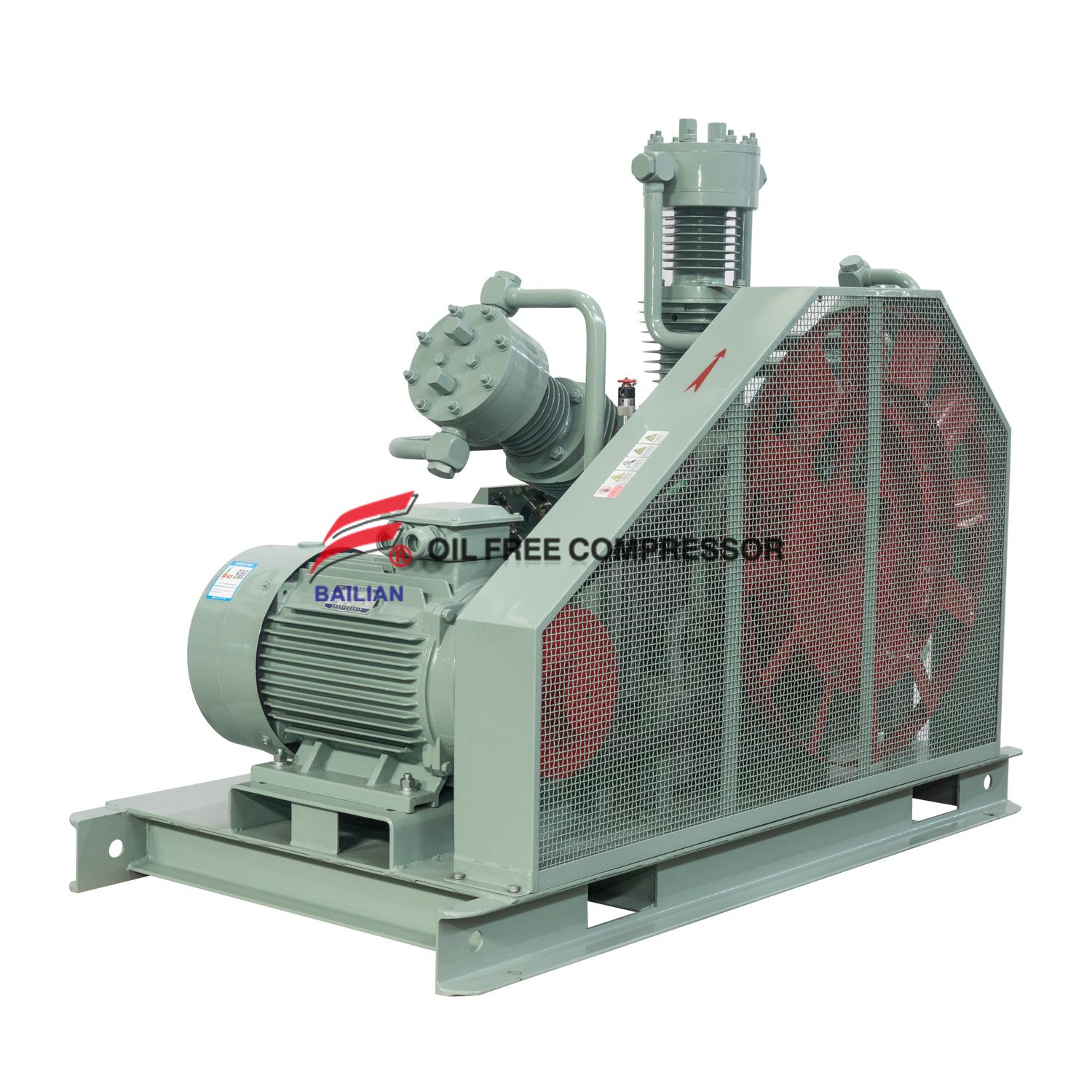

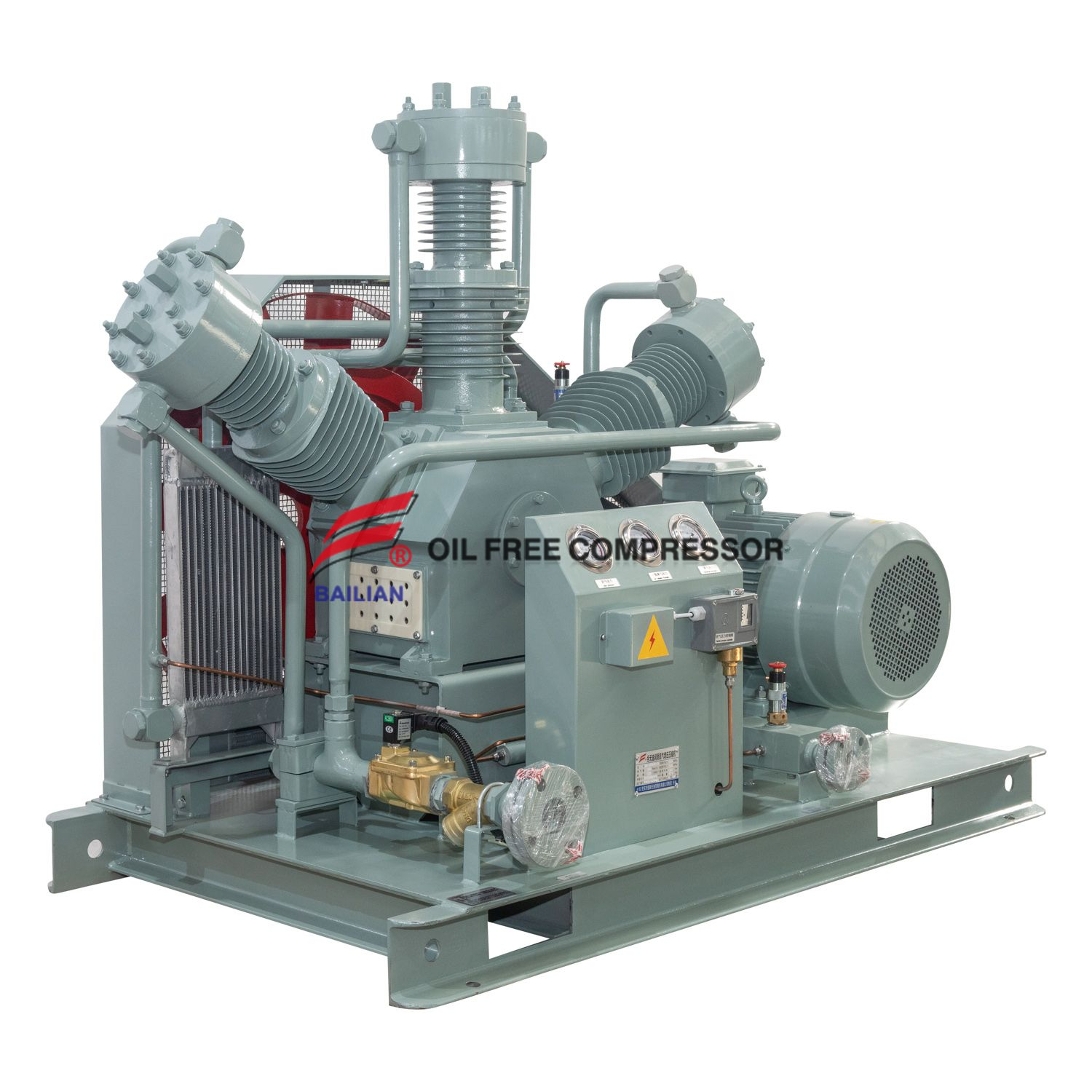

WW-60/9.5-45 W-shaped Sled Mounted Air Compressor

Medium

Dry air

Quantity

1

Inlet pressure  MPa（G）

0.95

Inlet temperature       ℃

-10～30

Discharge pressure    Mpa（G）

4.5

Discharge temperature（after cooling） ℃

≤55

Flow rate     Nm³/h

60（while inlet pressure=0.95MPa）

Piston stroke          mm

90

Model

WW-60/9.5-45

Compression stages

2

Structural style

W-shaped sled mounted

Cylinder quantity

3

Shaft speed      r/min

  530  ※

Voltage          V

380

Cooling mode

Air cooling

Cooling water flow        t/h

－

Shaft power           kw

≤9.2

Main motor speed        r/min

1440

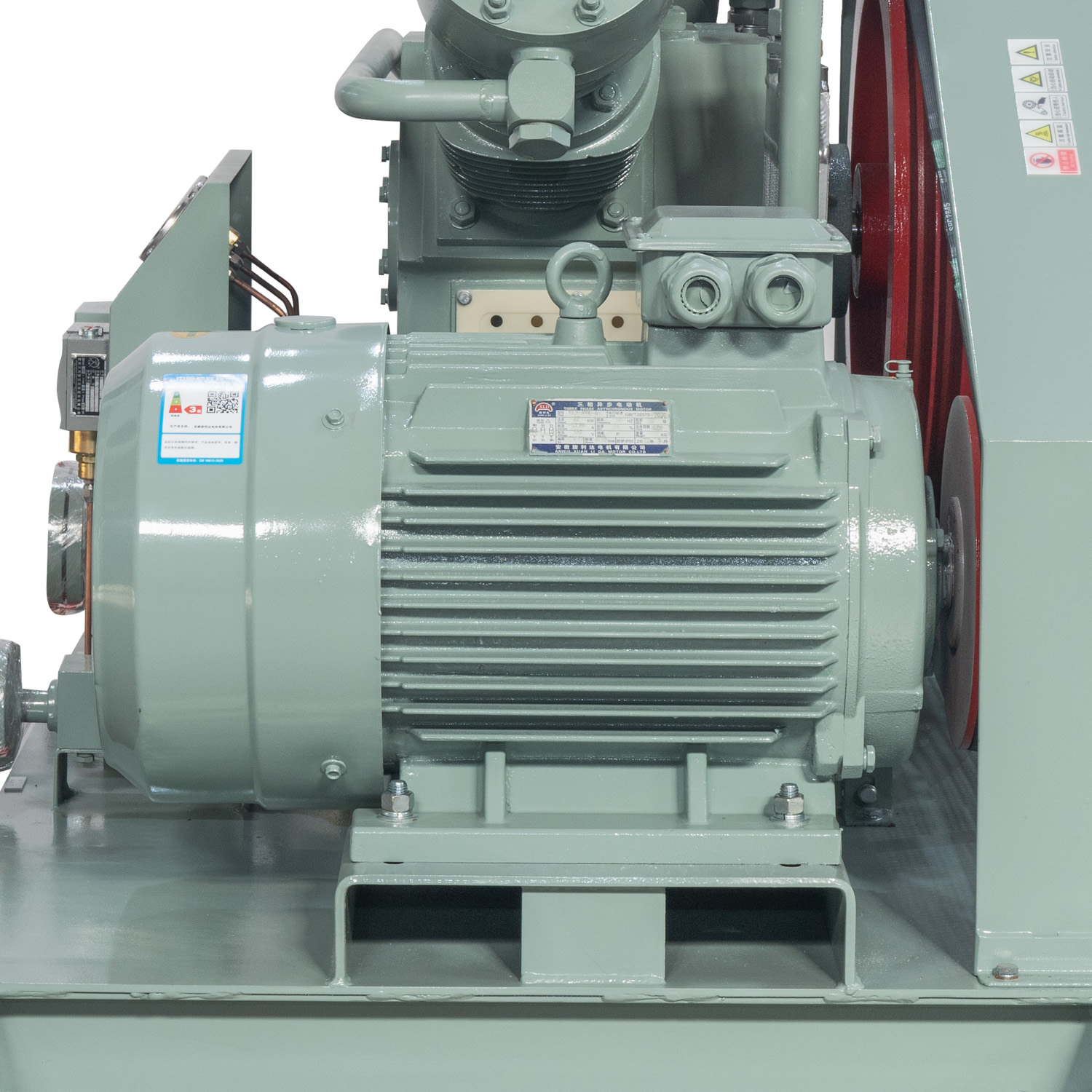

Motor

11kw  380V 50Hz  ※

Dimensions mmXmmXmm

1500×950×1350  ※

weight          T

   0.7  ※

Air intake and exhaust interface

Inlet DN25 discharge DN15

Water pipe interface

--

Drive mode

Belt drive

Materials in contact with gas

cylinder

cast iron

piston

aluminium alloy

Pistons and guide rings

Filled with PTFE

Scope of supply

Main engine, motor, cooler, water vapor separator, control cabinet, safety valve, matching flange, and accompanying documents.

Additional notes

The column※ data is for user reference, and there may be discrepancies when the machine leaves the factory.

Delivery time

30 days after the contract is signed and the advance payment is received
