cooling way: | |
---|---|
standard: | |
ETD: | |
packing box: | |
Availability: | |
Quantity: | |

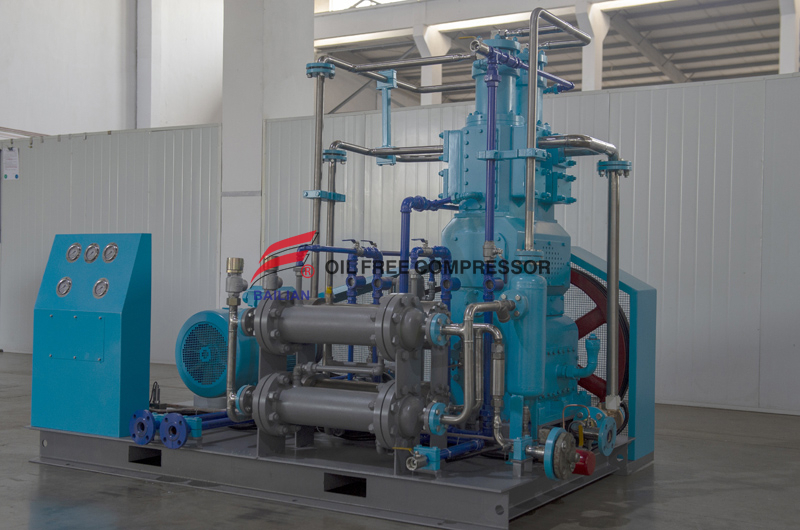

ZOW-1500-12-15
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | DRY OXYGEN GAS | |
2 | model | ZOW-1500/12-15 | |
3 | Structure | 1stage,vertical type, skid mounted | |
4 | Pressure stage | 1 ,2 cylinder | |
5 | Rated capacity(standard)Nm3/h | 1500(@inlet pressure 12barg) | |
6 | Rated inlet pressure MPa(G) | 1.2 | |
7 | Rated outlet pressure MPa(G) | 1.5 | |
8 | Inlet temperature℃ | ≤0~35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤50 | |
11 | Shaft speed r/min | 370 ※ | |
12 | Cooling way | water cooling | |
13 | Lubricate way | Shaft and connect rod | Lubricate oil |
Cylinder | Oil free lubricate | ||
Shaft power | ≤24kw | ||
14 | Motor power Kw | 30kw 380V 50Hz※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 2650×1650×2200 ※ | |
19 | Inlet and outlet mm | DN80/DN80 | |
20 | Weight Kg | 3800 ※ | |
21 | Voltage | 380v 50hz 3phase | |
22 | Water consumption | 3.8T/hr | |
Water inlet pipe | DN40 | ||
23 | Crank case oil | Customer prepare it | |
24 | Inlet oxygen filter | With | |
25 | Seal way | Piston rod packing seal | |
26 | Control way | PLC control | |
27 | Material of compressor | ||
Body, slide, | cast iron | ||
Piston ring | packing filled with PTFE | ||
Gas valve, cylinder liner | pipeline stainless steel | ||
