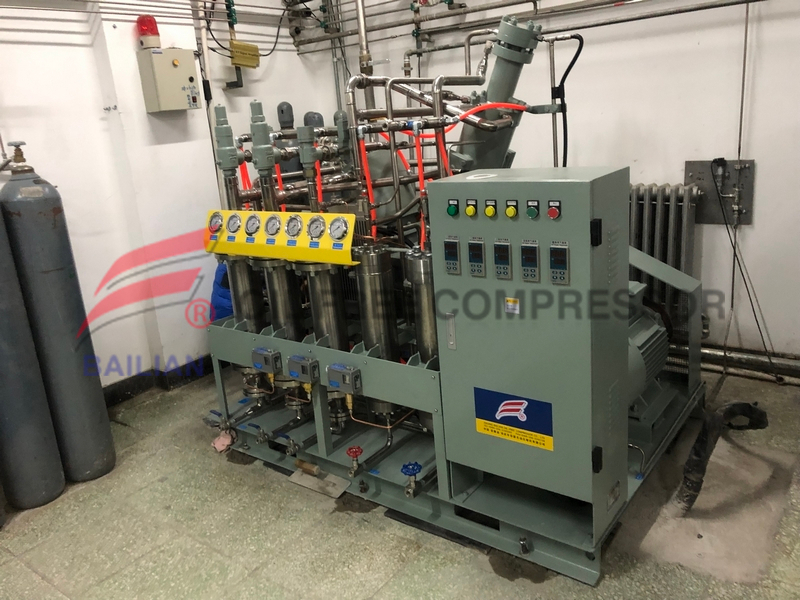

25nm3 200bar Oil Free Helium Compressor

Availability:
Quantity:

25nm3 200bar Oil Free Helium Compressor

Compressing Helium requires special purpose-built compressors.

Helium gas has a density that is 86% less than air. This means that the compressor has to be built to extremely tight tolerances to effectively compress helium gas without excessive blow-by. Furthermore, helium releases large amounts of heat when compressed, which the compressor must be able to absorb and shed. Therefore, for helium compressors, Bailian uses water cooling for the compressor for increased cooling efficiency.


Typical helium applications include recovery and compression systems for liquid cooling used in research institutions, particle accelerators, nuclear medicine, aerospace, and military missile applications. Helium recovery and compression is also used in general industrial applications, commercial merchant gas filling plants, heliostat applications, and helium mining.


GHED-25/200 quite recovery helium compressor is a device that increases the gas pressure by changing the volume of helium. The common uses of water cooled helium compressor are as follows:


1. Pressurization of helium gas shielding gas for metal, such as magnesium, zirconium, aluminum, titanium, etc.


2. Helium gas recovery, pressurized filling and storage, because helium gas is relatively expensive, it is very necessary to recover helium gas, such as helium gas in helium balloon recovery, waste purification and recycling, suitable for HEW HED


3. Helium gas can be used as a high-vacuum device, nuclear reactor. It is used as a pressurized gas for transporting liquid propellants such as liquid hydrogen and liquid oxygen on rockets and spacecraft.


The main features of bailian feng brand m125 quiet liquid helium compressor products:


All oil-free lubrication is clean and non-polluting.


High efficiency and low energy consumption.


Fully dynamic balanced design, low vibration


High reliability, continuous operation for 24 hours.


No special basic requirements, easy to install and maintain


The unit is air-cooled or water-cooled to reduce installation costs.


Compact structure, low operating and maintenance costs.


here is quite recovery water cooled helium compressor technical data


OIL FREE HELIUM RECIPROCATING COMPRESSOR


S/N

ITEMS

TECHNICAL PARAMETER

1

WORKING MEDIUM

Dry HELIUM GAS

2

COMPRESSOR MODEL

GHED-25/200

3

STRUCTURE

fan type, oil free,

4

Pressure stage

4, 4 cylinder

5

Rated capacity Nm3/h

25(suction atmosphere pressure)

6

Rate inlet pressure MPa(G)

0-50mbarg

7

Rated output pressure MPa(G)

20.0

8

Inlet temperature℃

≤40

9

outlet temperature℃

≤50

10

Transmit temperature℃

≤50

11

Shaft speed r/min

280 ※

12

Cooling way

Water cooling

13

Lubricate way

Crank shaft and connect rod

Grease lubricate

Cylinder

Oil free


Shaft power

11.5kw

14

Motor power Kw

22KW 415V 50Hz

15

Transmit way

Belt driven

16

Installation way

Has simple basement

17

Automatic control

Automatic stop when pressure over

18

dimension L×W×Hmm

1800X1200X1300

19

Inlet inch mm

40

20

Outlet inch mm

M16X1.5

21

Seal way

Magnetic seal way ,no leakage

22

Weight Kg

1200 ※

23

Power

415v 50hz 3 phase

24

Delivery time

40-50days

25

Cooling water inlet outlet mm

32

26

Water consumption

2000kgs/hr

Customer need to prepare water pump and water cooler

27

Compressor body/crank shaft

Cast iron


Gas valve

Stainless steel


Cylinder

Stainless steel


Pipe and cooler

Stainless steel
