cooling way: | |
---|---|
standard: | |
packing box: | |
ETD time: | |
Availability: | |
Quantity: | |

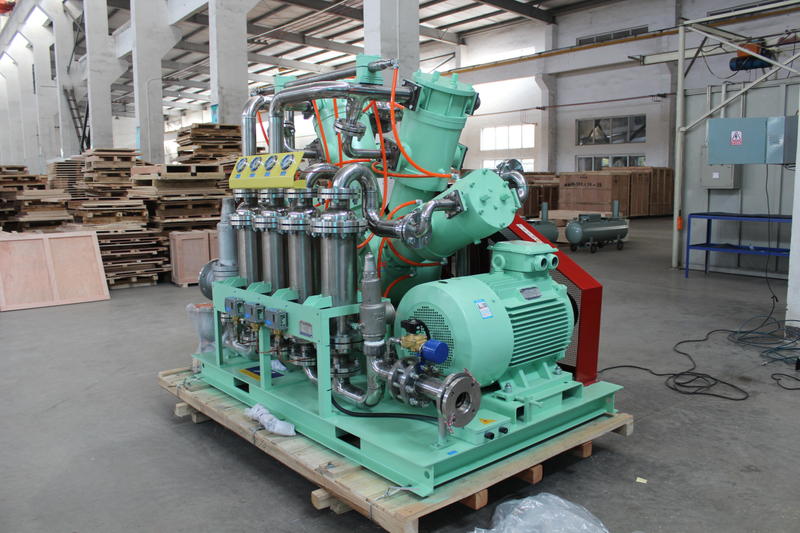

ZOW-200-0.5-6
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | OIL FREE OXYGEN GAS | |
2 | model | OW-200/1.5-25 | |
3 | Structure | oil free reciprocating,SW shape | |
4 | Pressure stage | 2STAGE , 4 cylinder | |
5 | Rated capacity(standard)Nm3/h | 200(@suction pressure 1.5barg) | |
6 | Rated inlet pressure MPa(G) | 0.15 | |
7 | Rated outlet pressure MPa(G) | 2.5 | |
8 | Inlet temperature℃ | ≤40 | |
9 | Outlet temperature ℃ | ≤130 BEFOR COOLING | |
10 | Transmit gas temperature℃ | ≤50 | |
11 | Shaft speed r/min | 500 ※ | |
12 | Cooling way | WATER cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free lubricate | ||
Shaft power | ≤34kw | ||
14 | Motor power Kw | 37KW 415V 50Hz 3phase (three phase asynchronous motor ,not ati explosive motor )※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1700*1300*1400※ ※ | |
19 | Inlet and outlet mm | 65/ 32 | |
20 | Weight Kg | 1300 ※ | |
21 | Voltage | 380V 50Hz 3phase | |
22 | Water consumption | 4000KGS/HR | |
23 | Water inlet and outlet mm | ||
24 | Material | ||
Cylinder | Stainless steel | ||
Valve | Stainless steel | ||
Pipe and cooling radiator | Stainless steel |
