cooling way: | |
---|---|
standard: | |
packing box: | |
ETD time: | |
Availability: | |
Quantity: | |

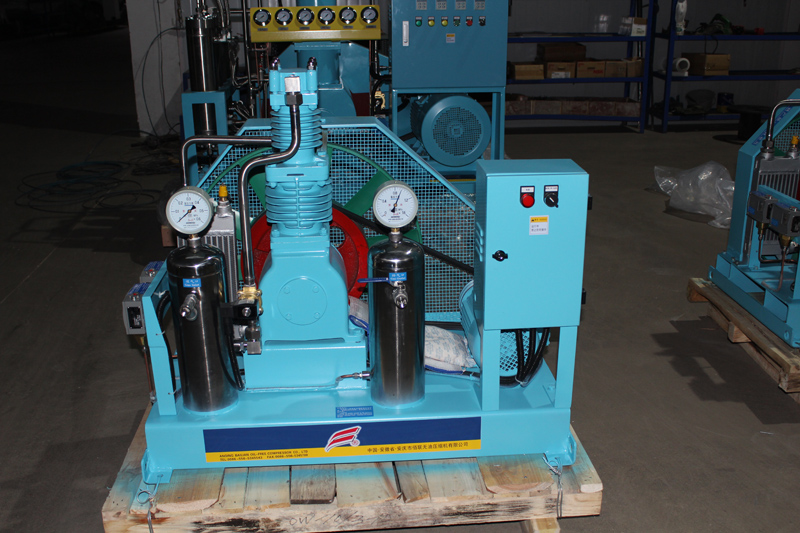

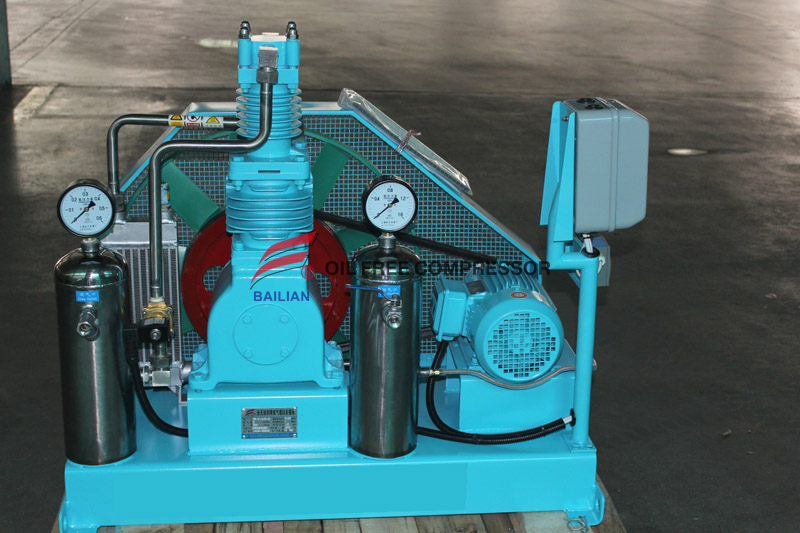

OW-1.5-4-40
No | Description | Technical Parameters | |
1 | Working medium | Oxygen gas | |
2 | Equipment model | OW-1.5/4-40 | |
3 | Structural style | Oil free type | |
4 | Compression stage | 2 | |
5 | Rated flow(standard state)Nm3/h | 2 | |
6 | Rated inlet pressure MPa(G) | 0.4 | |
7 | Rated outlet pressure MPa(G) | 4.0 | |
8 | Air inlet temperature℃ | ≤40 | |
9 | Discharge temperature℃ after cooling | ≤50 | |
10 | Gas supply temperature℃ | ≤50 | |
11 | Rotational speed of compressor/min | 200 ※ | |
12 | Type of cooling | air-cooling | |
13 | Method of lubrication | Bent axle、Connecting rod | Sealing grease lubrication |
Air cylinder | Oil free lubrication | ||
Shaft power | ≤0.34kw | ||
14 | Power of motor :Kw | 1.1KW 380V 50Hz ※ | |
15 | Transmission way | belt transmission | |
16 | The type of installation | Has simple basement | |
17 | The automatic control | It will be stop by automatic, when the exhaust pressure over | |
18 | The dimension: Long×wide×high mm | 800X600X700 ※ | |
19 | The size of gas inlet (mm) | 15 | |
20 | The size of gas outlet(mm) | M14X1.5 | |
21 | In and out of the water interface mm | null | |
22 | Water consumption kg/h | null | |
23 | Weight(Kg) | 180 ※ | |
24 | Delivery date | 35 days upon receive the advanced payment | |
25 | Power supply | 380V50hz 3phase | |
26 | FOB Shanghai | USD3,500 | |
Cylinder | Stainless steel | ||
Gas valve | Stainless steel | ||
Pipe and cooler | Stainless steel |
