ZOW-1500/5-12
BAILIAN
8414804090

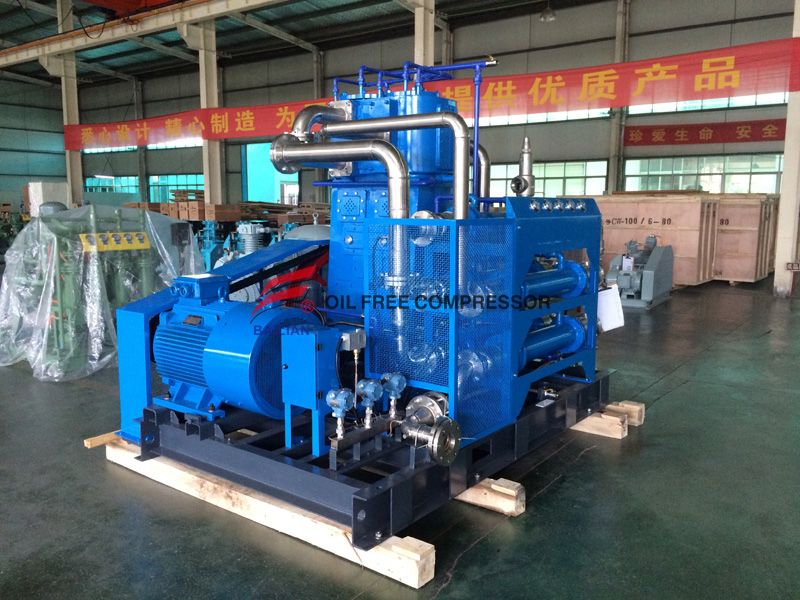

Our semi-oil-free oxygen compressor is a purpose-built solution for hospital oxygen pipeline pressurization and continuous industrial oxygen delivery, developed by BAILIAN with over 28 years of expertise in oxygen compression system R&D since 1995. Engineered to solve core pain points of low inlet pressure and large-flow oxygen supply demands, this compressor features an innovative isolated lubrication design: it uses standard lubricating oil for mechanical parts, while the oxygen compression chamber is fully separated from the lubrication system, ensuring 100% oil-free and clean oxygen throughout compression. Optimized for non-stop 24-hour operation, it delivers an exceptional 6000-7000 hour maintenance interval, making it a cost-effective, reliable choice for medical facilities and industrial oxygen projects worldwide.
Oxygen is a high-risk combustion improver, so we enforce strict oxygen cleaning protocols for every gas-contacting component, with detailed cleaning records for full traceability. The isolated structure eliminates any risk of oil contact with compressed oxygen, fully complying with medical safety standards and preventing combustion and explosion hazards.
The vertical cylinder oxygen compressor design aligns the cylinder perpendicular to the horizontal plane, leveraging the piston’s own potential energy to reduce power consumption and long-term operating costs. The integrated water cooled oxygen compressor system ensures superior cooling performance, drastically extending the service life of critical wearing parts.
Equipped with comprehensive safety mechanisms: low inlet pressure protection at the suction end, high exhaust pressure and over-temperature protection at the discharge end, plus safety valves and temperature displays for each compression stage. The system triggers automatic shutdown and alarm in case of over-temperature or over-pressure, guaranteeing safe unattended operation. A built-in forklift groove at the bottom enables flexible site transfer.
Optimized for long-term heavy-duty operation, this hospital oxygen booster station compressor supports non-stop 24-hour running, minimizing downtime and maximizing operational efficiency for our business partners.
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
ZOW-500/0.2-10 | oxygen | 0.2,30 | 1,145 | 75 | 500 | 220V/380V/415V/440V 50/60HZ | water cooling |
ZOW-1500/12-15 | oxygen | 1.2,150 | 1.5,215 | 30 | 1500 | 220V/380V/415V/440V 50/60HZ | water cooling |
ZOW-1500/5-12 | oxygen | 5,70 | 1.2,172 | 75 | 1500 | 220V/380V/415V/440V 50/60HZ | water cooling |
The primary application is medical oxygen pipeline compressor systems for hospitals, matching with PSA oxygen generators to pressurize oxygen for continuous delivery to wards, operating rooms, ICUs and other critical care areas, delivering stable 7-10 bar line pressure for healthcare facilities.
Ideal for small and medium-sized industrial oxygen generation stations, providing stable pipeline pressurization for water treatment, metallurgy and other industrial processes requiring continuous large-flow oxygen supply.
Perfectly paired with on-site oxygen generators to build reliable oxygen supply systems for remote medical stations, mining sites and off-grid facilities with limited access to centralized oxygen supply.
Our semi-oil-free oxygen compressor for hospital use is manufactured in strict compliance with CE and ISO9001 standards, with all products passing rigorous oxygen safety and performance testing before delivery. We use standard export plywood boxes for packaging to ensure safe worldwide transportation, with a 90-day lead time for mass production orders.
We provide fully customized solutions for industrial clients based on your specific working conditions, including adjustable suction pressure, discharge pressure, flow rate, voltage and frequency, and cooling methods. Our full-service support covers pre-sales working condition assessment, professional technical solution design, on-site installation guidance, operation and maintenance training, and lifetime after-sales technical support.
The compressor adopts a fully isolated lubrication design, which completely separates the oxygen compression chamber from the lubrication system, ensuring the compressed oxygen is always oil-free and clean. All gas-contacting components are processed with strict oxygen cleaning protocols, with multi-layer safety protection systems to meet medical safety standards.
This compressor is specially optimized for heavy-duty operation, supporting 24-hour non-stop continuous running. Its scientific design and high-quality components deliver a maintenance interval of up to 6000-7000 hours, greatly reducing maintenance costs and downtime.
