4nm3 20bar Laser Cutting Oil Free Nitrogen Compressor

Oil free high pressure nitrogen compressor
Color:blue /white/grey/ customer Customized
Material
alve, piping : Stainless steel
Piston :Aluminum alloy /copper alloy
Piston ring ,guide ring :Fill PTFE
Payment: 30% T/T in advance, LC at sight
Packing :export plywood
Delivery time :30days days since delivery
Quality guarantee :12months since delivery
Quality standard :CE ISO9001
After sale service :one year ,if have quality problems will send repair parts to customer for free


This oil-free high-pressure nitrogen compressor is applicable to inlet pressure of 4-6 barg (50-90 psig) and exhaust pressure of 20 barg
Small and medium-sized PSA air separation oxygen generation system with flow of 3-5nm3 / h can operate continuously for 24 hours.
Characteristics of this compressor
Compressor characters
Vertical design,less power consumption @ same gas capacity
Piston ring has longer service life
Pressure stage :1stage ,each stage has Scientific pressure ratio,low temperature increase
Each stage config :pressure gauge ,temperature sensor
Safety valve ,
Config low suction pressure switch ,high pressure discharge switch
High temperature shut down ,
Cylinder use stainless steel material
Speed:low speed 200-300RPM
Pressure :working pressure 20bar ,
Color :blue color /gravy color or customerization
Availability:
Quantity:

4nm3 20bar Laser Cutting Oil Free Nitrogen Compressor

Bailian oil free nitrogen compressor

According to the product structure, it can be divided into

Type Z, V, W, SW, GSW, ZW

The displacement of the compressor can reach 10nm3 / min and the maximum pressure can reach 70MPa


The product has the following characteristics

1. Scientific and reasonable design and stable operation

2 low noise, low vibration, compact structure, stable operation, safety and reliability, high automation level,


The machine remote display and control system can also be configured according to customer requirements

3. Display the alarm shutdown function of high temperature, low inlet pressure and high exhaust pressure of the compressor,

4. Patented piston ring design, stuffing box design, less gas leakage and longer maintenance time



Product application:

It is widely used for pressure increase, pressure stabilization, power and purging in process flow, as well as power plant, food industry, medicine and other industries


   OIL FREE NITROGEN COMPRESSOR

S/N

ITEMS

TECHNICAL DATA

1

Working medium

Dry Nitrogen gas

2

model

ZW-4/5-20

3

Structure

oil free reciprocating

1 stage 2 cylinder  ,Z type

4

Pressure stage

1

5

Rated capacity(standard)Nm3/h

4@inlet pressure=0.5MPa(g)

6

Rated inlet pressure MPa(G)

0.5

7

Rated outlet pressure MPa(G)

2.0

8

Inlet temperature℃

≤35

9

Outlet temperature ℃

≤55

10

Transmit gas temperature℃

≤55

11

Shaft speed r/min

430               ※

12

Cooling way

Air cooling

13

Lubricate way

Shaft and connect rod

Grease seal

Cylinder

Oil free


Shaft power

≤0.9kw

14

Motor power Kw

1.5kw 380V 50Hz 3Ph           ※

15

Transmit way

Belt driven

16

Installation way

Simple basement

17

Automatic control parts

Overload ,stop automatic

18

External dimension L×W×H mm

1000*760*860     ※

19

Inlet and outlet mm

DN15 /DN15

20

Weight Kg

240         ※

21

Voltage

380v 50hz 3phase

22

Delivery time

20 days

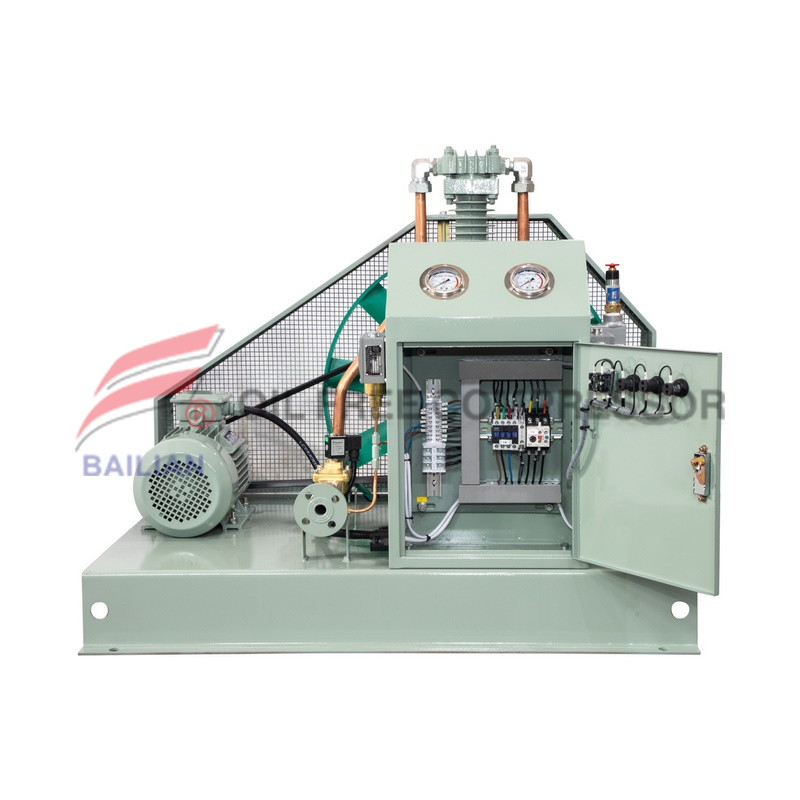

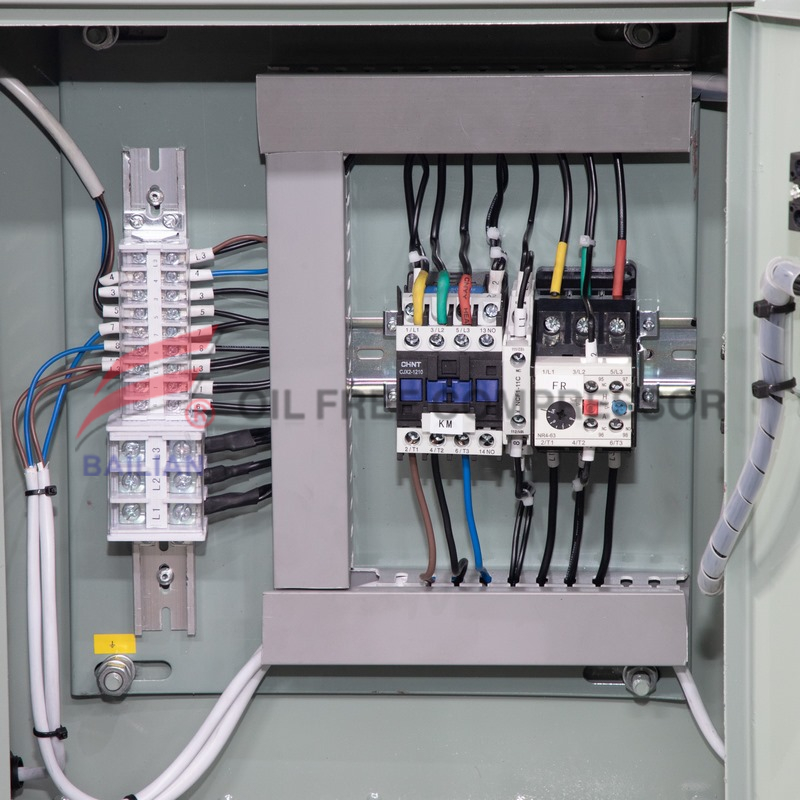

039 (复制)040 (复制)
