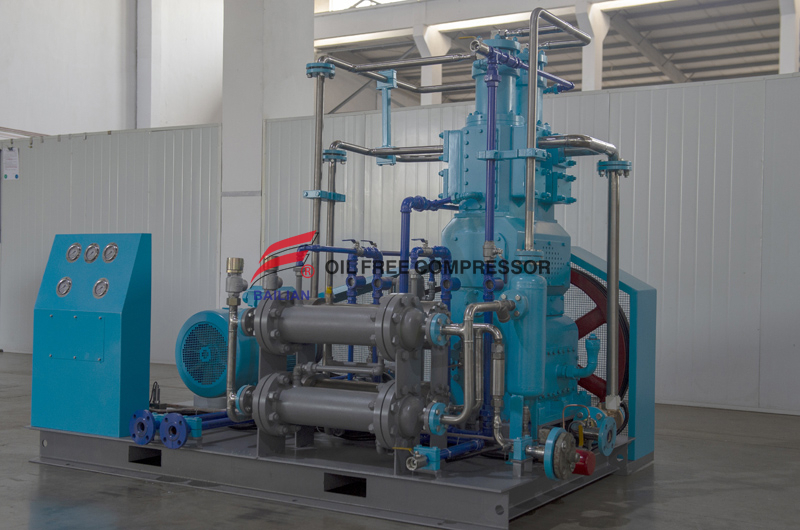

800NM3 12bar Oil Free Oxygen Compressor

1

Working medium

Dry oxygen gas

2

model

ZOW-800/1-12

3

Structure

2 stage,vertical   type, skid mounted

4

Pressure stage

2 ,2 cylinder

5

Rated capacity(standard)Nm³/h

800(@inlet   pressure 1barg)

6

Rated inlet   pressure MPa(G)

0.1

7

Rated outlet   pressure MPa(G)

1.2

8

Inlet temperature℃

≤0～25

9

Outlet   temperature ℃

≤55

10

Transmit gas   temperature℃

≤55

11

Shaft speed r/min

410              ※

12

Cooling way

Water cooling

13

Lubricate way

Shaft and   connect rod

Lubricate oil

Cylinder

Oil free   lubricate

Shaft power

<85kw

14

Motor power Kw

90kw 380V50Hz※

15

Transmit way

Belt driven

16

Installation way

Simple basement

17

Automatic   control parts

Overload ,stop   automatic

18

External   dimension L×W×H mm

L2650×W1950×H2300※

19

Inlet and outlet   mm

DN125/DN65

20

Weight Kg

4200             ※

21

Voltage

380 50hz 3phase

22

Water   consumption

9.0T/HR

Water inlet pipe

DN50

23

Crank case oil

Customer prepare   it

24

Inlet nitrogen   filter

With

25

Water   consumption

9.0Ton/HR

Water pressure

2-4bar

Water inlet   /outlet temperature

50/50

Water pump lift

40m

Water pump   capacity

≥12Ton/hr

Water cooler

Customer prepare   it

Compressor body、slide

Cast iron

Piston ring   ,packing stuff

PEFT

GAS VALVE AND   CYLINDE R SLEEVER

STAINLESS STEEL
