cooling way: | |
---|---|
standard: | |
start way: | |
ETD time: | |
Availability: | |
Quantity: | |

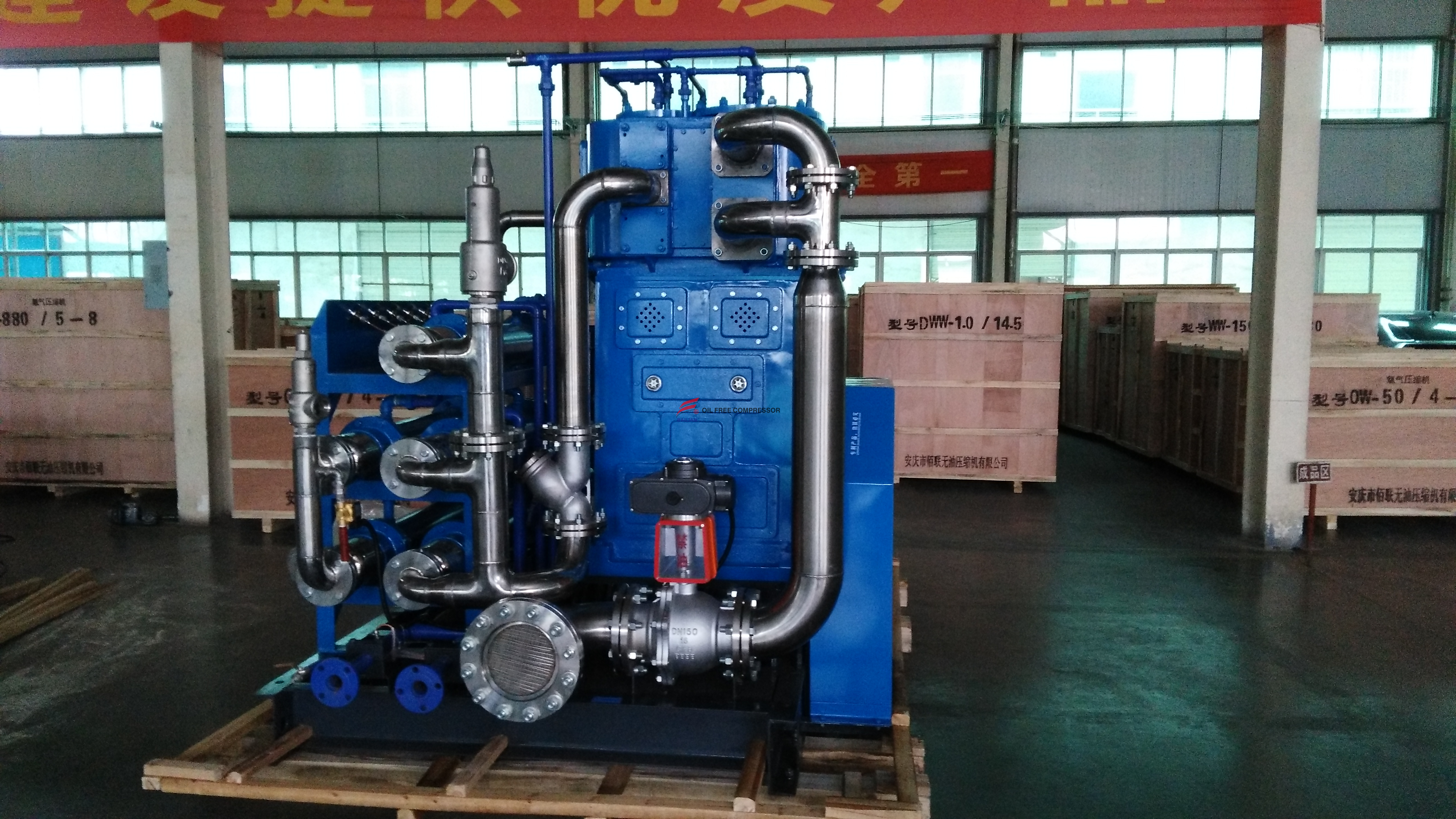

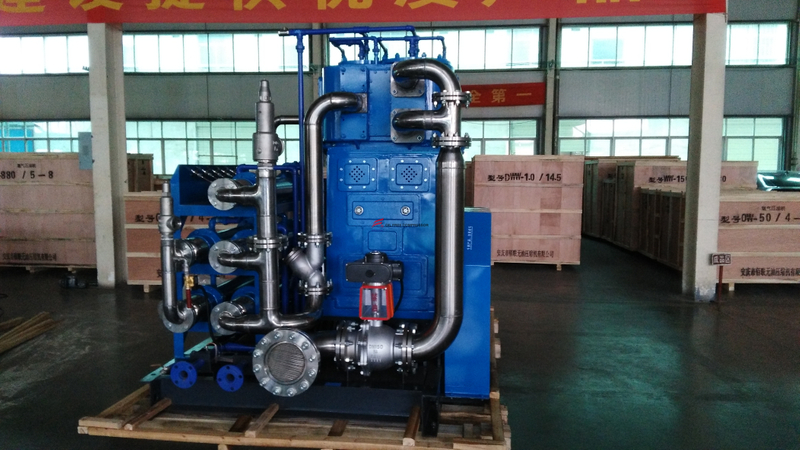

ZOW-1200-4-10
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | DRY OXYGEN GAS 93% | |
2 | model | ZOW-1200/4-10 | |
3 | Structure | 1stage,vertical type, skid mounted | |
4 | Pressure stage | 1stage ,2 cylinder | |
5 | Rated capacity(standard)Nm3/h | 1200(@inlet pressure 4barg) | |
6 | Rated inlet pressure MPa(G) | 0.4 | |
7 | Rated outlet pressure MPa(G) | 1.0 | |
8 | Inlet temperature℃ | ≤5~35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 430 ※ | |
12 | Cooling way | water cooling | |
13 | Lubricate way | Shaft and connect rod | Lubricate oil |
Cylinder | Oil free lubricate | ||
Shaft power | ≤55kw | ||
14 | Motor power Kw | 75kw 380V 50Hz 3PHASE ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | L2650×W1850×H2200 ※ | |
19 | Inlet and outlet mm | DN125/DN80 | |
20 | Weight Kg | 3600 ※ | |
21 | Voltage | 380v 50hz 3phase | |
22 | Water consumption | DN50 | |
Water inlet pipe | DN50 | ||
23 | Crank case oil | Customer prepare it | |
24 | Inlet oxygen filter | With | |
25 | Seal way | Piston rod packing seal | |
26 | Water consumption | 6.5Ton/HR | |
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | DRY OXYGEN GAS 93% | |
2 | model | ZOW-1200/4-10 | |
3 | Structure | 1stage,vertical type, skid mounted | |
4 | Pressure stage | 1stage ,2 cylinder | |
5 | Rated capacity(standard)Nm3/h | 1200(@inlet pressure 4barg) | |
6 | Rated inlet pressure MPa(G) | 0.4 | |
7 | Rated outlet pressure MPa(G) | 1.0 | |
8 | Inlet temperature℃ | ≤5~35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 430 ※ | |
12 | Cooling way | water cooling | |
13 | Lubricate way | Shaft and connect rod | Lubricate oil |
Cylinder | Oil free lubricate | ||
Shaft power | ≤55kw | ||
14 | Motor power Kw | 75kw 380V 50Hz 3PHASE ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | L2650×W1850×H2200 ※ | |
19 | Inlet and outlet mm | DN125/DN80 | |
20 | Weight Kg | 3600 ※ | |
21 | Voltage | 380v 50hz 3phase | |
22 | Water consumption | DN50 | |
Water inlet pipe | DN50 | ||
23 | Crank case oil | Customer prepare it | |
24 | Inlet oxygen filter | With | |
25 | Seal way | Piston rod packing seal | |
26 | Water consumption | 6.5Ton/HR | |
