SW-282/5-16
BAILIAN
8414804090

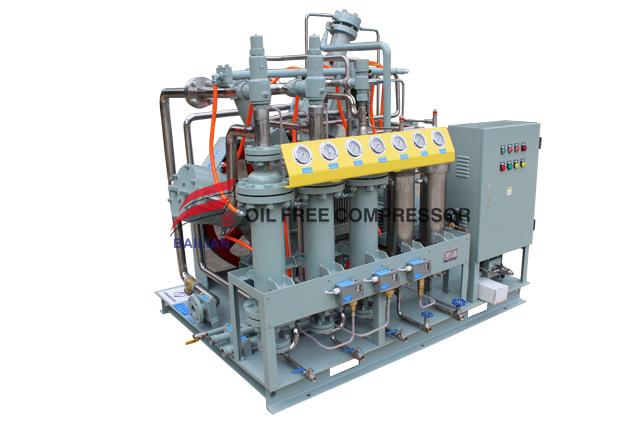

TOTALLY OIL FREE NITROGEN BOOSTER
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry Nitrogen | |
2 | model | SW-282/5-16 | |
3 | Structure | oil free reciprocating,fan type,skid mounted | |
4 | Pressure stage | 2 ,4cylinder | |
5 | Rated capacity(standard)Nm3/h | 282@suction pressure =0.5MPa（g） | |
6 | Rated inlet pressure MPa(G) | 0.5 | |
7 | Rated outlet pressure MPa(G) | 1.6 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤130 | |
10 | Transmit gas temperature℃ | ≤50 | |
11 | Shaft speed r/min | 680 ※ | |
12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | grease |
Cylinder | Oil free lubricate | ||
Shaft power | ≤18.5kw | ||
14 | Motor power Kw | 22KW 380V 50Hz 3phase ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1700*950*1450 ※ | |
19 | Inlet and outlet mm | ||
20 | Weight Kg | 950 ※ | |
21 | Voltage | 380v/ 50hz/ 3phase | |
22 | Water consumption | Null | |
23 | Working model | Heavy duty ,can working 7*24 | |
cylinder | Carbon steel | ||
Gas valve | Stainless steel | ||
Pipe and cooler | Carbon steel and stainless steel | ||
TOTALLY OIL FREE NITROGEN BOOSTER
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry Nitrogen | |
2 | model | SW-282/5-16 | |
3 | Structure | oil free reciprocating,fan type,skid mounted | |
4 | Pressure stage | 2 ,4cylinder | |
5 | Rated capacity(standard)Nm3/h | 282@suction pressure =0.5MPa（g） | |
6 | Rated inlet pressure MPa(G) | 0.5 | |
7 | Rated outlet pressure MPa(G) | 1.6 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤130 | |
10 | Transmit gas temperature℃ | ≤50 | |
11 | Shaft speed r/min | 680 ※ | |
12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | grease |
Cylinder | Oil free lubricate | ||
Shaft power | ≤18.5kw | ||
14 | Motor power Kw | 22KW 380V 50Hz 3phase ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1700*950*1450 ※ | |
19 | Inlet and outlet mm | ||
20 | Weight Kg | 950 ※ | |
21 | Voltage | 380v/ 50hz/ 3phase | |
22 | Water consumption | Null | |
23 | Working model | Heavy duty ,can working 7*24 | |
cylinder | Carbon steel | ||
Gas valve | Stainless steel | ||
Pipe and cooler | Carbon steel and stainless steel | ||
