HW-40/0.7-35
BAILIAN
8414804090
Largest membrane hydrogen cylinder filling compressor manufacturers,as the name suggests, are devices that change the volume of hydrogen to complete compression and delivery. According to the principle, the hydrogen compressor can be divided into two types: volumetric type and speed type. Hydrogen compressors are available in diaphragm, reciprocating piston, rotary, screw, and turbine types.
Hydrogen is an important industrial raw material and has many uses in the industry. The common uses of hydrogen compressors are as follows:
membrane hydrogen filling compressor manufacturers filling hydrogen into high pressure bottle for storage, our hydrogen compressor filling pressure 150-200BARG
Decomposition of ammonia to produce hydrogen, pressurized for use in heat treatment of steel mill stainless steel
Photovoltaic power generation + hydrogen refueling station: electricity is produced by photovoltaic power generation, and then hydrogen is produced by water electrolysis. The hydrogen booster compressor supplier in the general hydrogen refining station is pressurized to 400-450 barg, and is filled into a high-pressure hydrogen bottle to supply hydrogen energy vehicles. use.
Largest membrane hydrogen cylinder filling compressor, such as hydrogen compressors for polysilicon
S/N | ITEMS | TECHNICAL PARAMETER | |
1 | Working medium | Dry Hydrogen gas | |
2 | Model | HW-40/0.7-35 | |

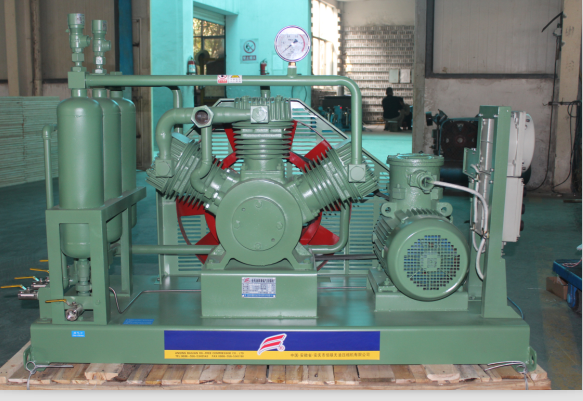

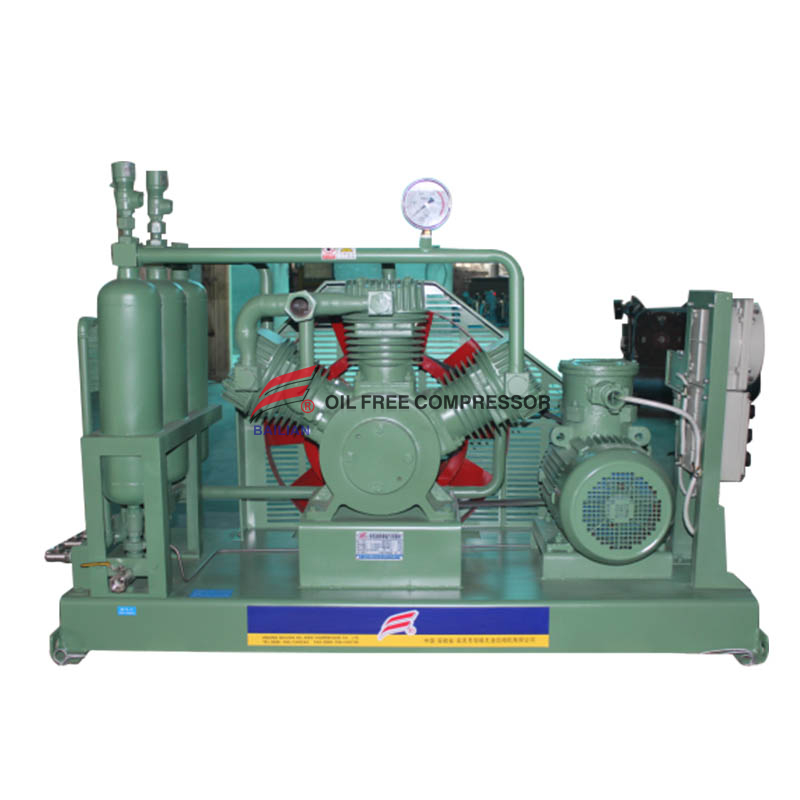

3 | Structure | Totally oil free W type | |
4 | Pressure stage | 3 ,3cylinder | |
5 | Standard delivery Nm3/h | 40(@0.7barg) | |
6 | Rated inlet pressure MPa | 0.07 | |
7 | Rated outlet pressure MPa(G) | 3.5 | |
8 | Inlet temperature℃ | ≤40 | |
9 | Outlet temperature℃ | ≤130 | |
10 | Transmit temperature℃ | ≤50 | |
11 | Speed r/min | 400 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Crank shaft,connect rod | Seal grease |
Cylinder | Oil free lubricate | ||
Shaft power | ≤10.7kw | ||
14 | Motor power Kw | 15KW 415V 50Hz dⅡCT4 | |
15 | Transmit way | Belt driven | |
16 | Installation way | Has simple basement | |
17 | Automatic control | Exhaust pressure gauge automatic shutdown | |
18 | Dimension L×W×H mm | 1600X1200X1200 ※ | |
19 | Gas inlet mm | 40 | |
20 | Gas outlet mm | 15 | |
21 | Water inlet mm | 20 | |
22 | Water consumption Kg/h | 1000 | |
23 | Live electrical explosion-proof rating | dⅡCT4 | |
24 | Weight Kg | 940 ※ | |
25 | Delivery time | 45 days since get payment | |
26 | Quality Standard | China standard | |
27 | Material for parts | ||
cylinder | Carbon steel and Stainless steel | ||
Gas valve | Stainless steel | ||
Pipe and cooler | Stainless steel | ||
Pipe and cooler | Stainless steel | ||
