| cooling way: | |
|---|---|
| standard: | |
| start way: | |
| ETD time: | |
| Quantity: | |

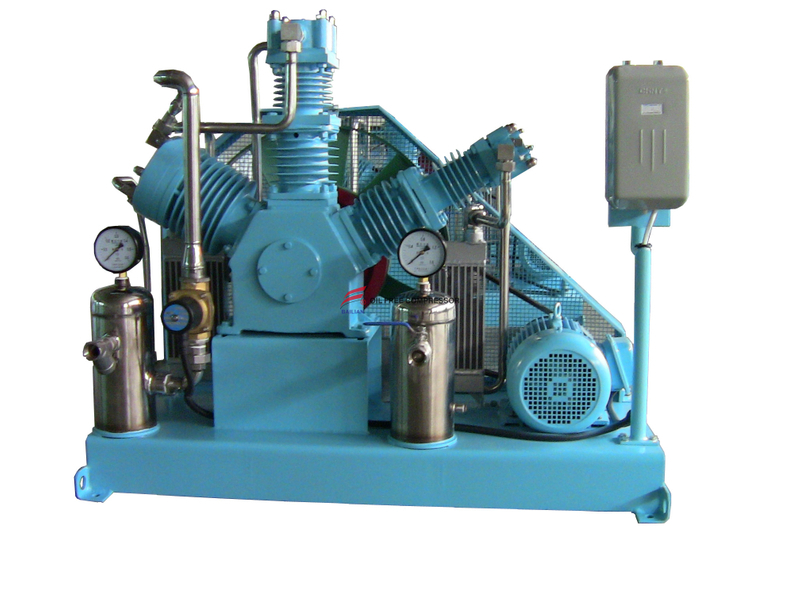

OW-100-0.15-4
No | Description | Technical Parameters | |
1 | Working medium | Oxygen gas | |
2 | Equipment model | OW-100/0.15-4 | |
3 | Structural style | Oil free w type | |
4 | Compression stage | 2 ,3 cylinder | |
5 | Rated flow(standard state)Nm3/h | 100（suction 0.15barg） | |
6 | Rated inlet pressure MPa(G) | 0.015 | |
7 | Rated outlet pressure MPa(G) | 0.4 | |
8 | Gas inlet temperature℃ | ≤40 | |
9 | Discharge temperature℃ | ≤130 | |
10 | Gas supply temperature℃ | ≤50 | |
11 | Rotational speed of compressor/min | 300 ※ | |
12 | Type of cooling | WATER-cooling | |
13 | Method of lubrication | Bent axle、Connecting rod | Sealing grease lubrication |
Air cylinder | Oil free lubrication | ||
Shaft power | ≤11.2kw | ||
14 | Power of motor :Kw | 15KW 380V 50Hz 3phase ※ | |
15 | Transmission way | belt transmission | |
16 | The type of installation | Has simple basement | |
17 | The automatic control | It will be stop by automatic, when the exhaust pressure over | |
18 | The dimension: Long×wide×high mm | 1600X1200X1400 ※ | |
19 | The size of gas inlet (mm) | 50 | |
20 | The size of gas outlet(mm) | 25 | |
21 | In and out of the water interface mm | 40 | |
22 | Water consumption kg/h | 1500 | |
23 | Weight(Kg) | 940 ※ | |
24 | Delivery date | 40 days upon receive the advanced payment | |
25 | Power supply | 380V 50hz 3phase | |
