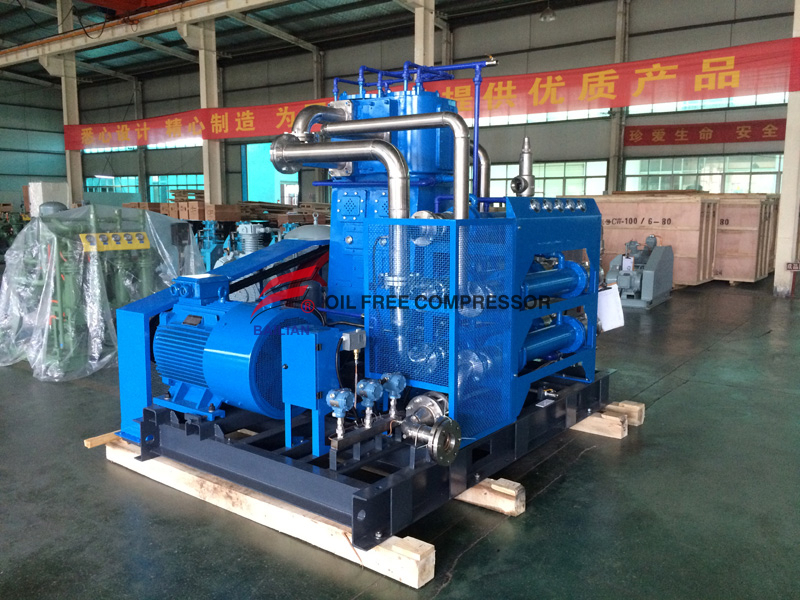

500NM3 10bar Oil Free Oxygen Compressor

1

Working medium

DRY OXYGEN GAS

2

model

ZOW-500/0.2-10

3

Structure

2stage,vertical   type, skid mounted

4

Pressure stage

2 ,2 cylinder

5

Rated capacity(standard)Nm³/h

500(@inlet   pressure 0.2barg)

6

Rated inlet   pressure MPa(G)

0.02

7

Rated outlet   pressure MPa(G)

1.0

8

Inlet temperature℃

≤0～35

9

Outlet   temperature ℃

≤55

10

Transmit gas   temperature℃

≤55

11

Shaft speed r/min

440              ※

12

Cooling way

water cooling

13

Lubricate way

Shaft and   connect rod

Lubricate oil

Cylinder

Oil free   lubricate

Shaft power

≤66kw

14

Motor power Kw

75kw 415V 50Hz※

15

Transmit way

Belt driven

16

Installation way

Simple basement

17

Automatic   control parts

Overload ,stop   automatic

18

External   dimension L×W×H mm

2650×1850×2350  ※

19

Inlet and outlet   mm

DN150/DN50

20

Weight Kg

4500            ※

21

Voltage

415v 50hz 3phase

22

Water   consumption

6.8T/hr

Water inlet pipe

DN40

23

Crank case oil

Customer prepare   it

24

Inlet oxygen   filter

With

25

Seal way

Piston rod   packing seal

26

Control way

Traditional   control

27

Material of   compressor

Body, slide,

cast iron

Piston ring

packing filled   with PTFE

Gas valve,   cylinder liner and pipe

pipeline   stainless steel
