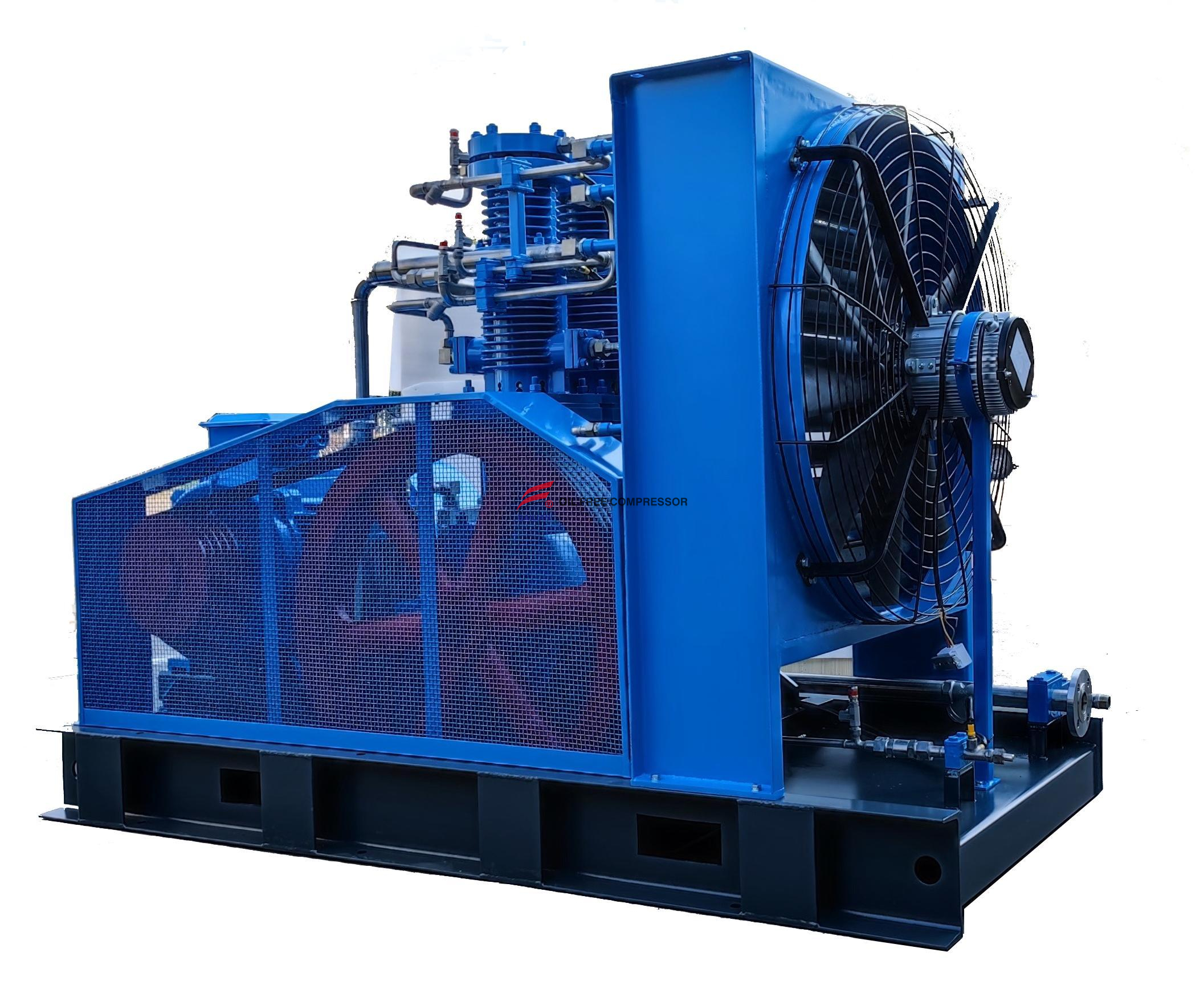

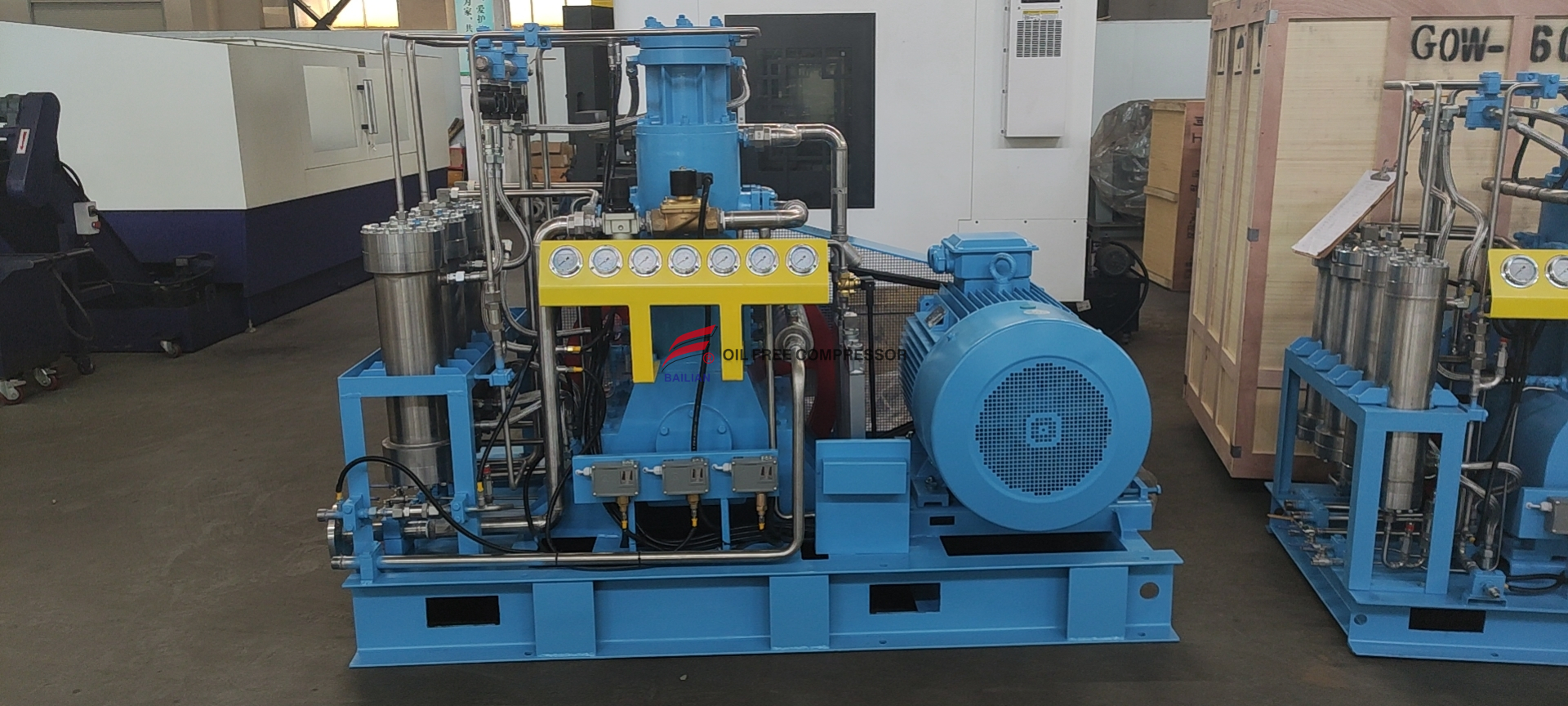

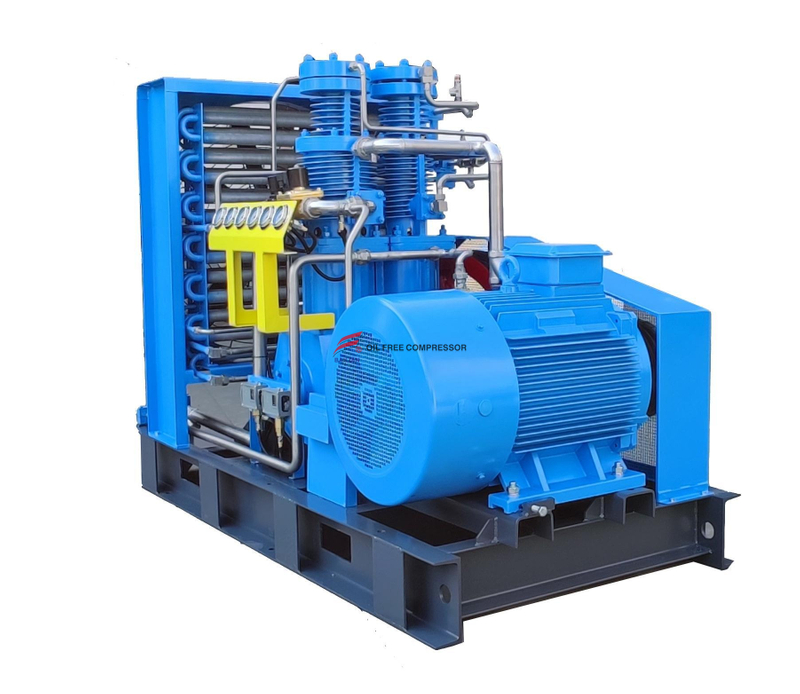

GOW-150-4-150
TOTALLY OIL FREE OXYGEN BOOSTER
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry Oxygen gas | |
2 | model | GOW-150/4-150 | |
3 | Structure | oil free reciprocating | |
4 | Pressure stage | 4 | |
5 | Rated capacity(standard)Nm3/h | 150Nm3(@4barg) | |
6 | Rated inlet pressure MPa(G) | 0.3-0.4 | |
7 | Rated outlet pressure MPa(G) | 15.0 | |
8 | Inlet temperature℃ | ≤45 | |
9 | Outlet temperature ℃ | ≤130 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 300 ※ | |
12 | Cooling way | AIR cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free lubricate | ||
14 | Motor power Kw | 45KW ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1800X1500X1800 ※ | |
19 | Inlet and outlet mm | 50/M22×1.5 | |
20 | Weight Kg | 2200 ※ | |
21 | Voltage | 380/400/415V 50HZ /3phase 440v/60hz/3phase |
